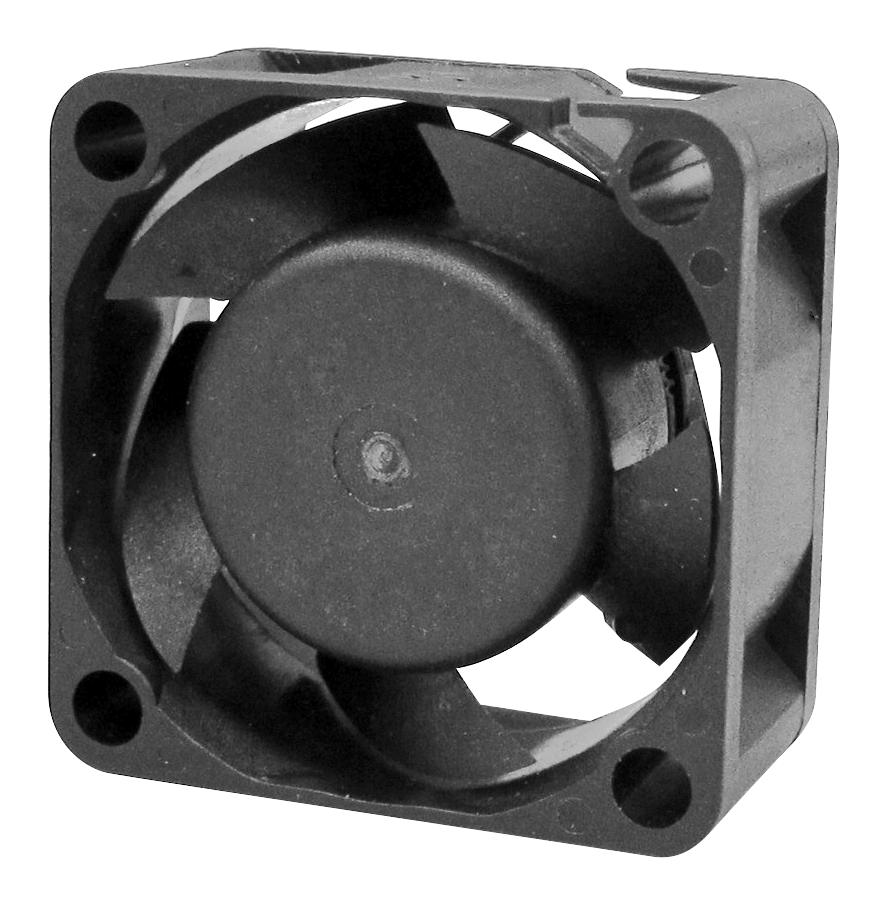

MULTICOMP MC002694 DC Axial Fan
The 40mm x 40mm x 20mm multicomp DC axial fan operates at 24V DC, providing an airflow of 8.9 CFM with a noise level of 25.5dB. Designed for cooling applications, it features a Vapo bearing system, thermoplastic PBT frame and blades, and a rated speed of 7000RPM plus or minus 15%. Its compact size, lightweight design of 29g, and sturdy mounting holes make it ideal for electronic enclosure cooling in industrial and consumer equipment. The fan is RoHS compliant, has a life expectancy of 60,000 hours, and includes polarity and automatic restart protections.
MULTICOMP MC002694 DC Axial Fan Specifications:
- Rated Voltage: 24V DC
- Rated Current: 32mA / Max. 39mA
- Rated Power Consumption: 0.77W / Max. 0.94W
- Operating Voltage Range: 8 to 27.6V DC
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Motor Design: Single Phase, 4-Pole Bushless DC Motor
- Bearing System: Vapo Bearing
- Frame Material: Thermoplastic PBT of UL 94V-0
- Fan Blade Material: Thermoplastic PBT of UL 94V-0
- Rotation Direction: Counter-Clockwise (viewed from front)
- Dimensions: 40mm x 40mm x 20mm
- Rated Speed: 7000RPM +15%
- Air Flow: 8.9CFM
- Static Pressure: 0.22 Inch-H2O
- Acoustic Noise: 25.5dB (A)
- Insulation Class: UL Class A
- Life Expectancy: 60,000 hours @ 40°C, 65% Humidity
- Protection: Polarity Protection, Automatic Restart
- Weight: 29g
Buy the Multicomp MC002694 – Reliable Cooling Fan for Industrial Applications
Enhance your electronic cooling solutions with our reliable 40mm multicomp DC axial fan, operating at 24V DC with an airflow of 8.9 CFM. This compact fan features a durable Vapo bearing system, thermoplastic PBT frame and blades, and a noise level of only 25.5dB, making it ideal for industrial, commercial, and consumer applications. With a lifespan of 60,000 hours, automatic restart, and polarity protection, this fan guarantees long-lasting, efficient performance. Experience quality and reliability—purchase online today for quick, secure delivery to your workspace.
Order your multicomp series MC002694 24V DC axial fan today and ensure dependable cooling for your electronic and industrial projects.
