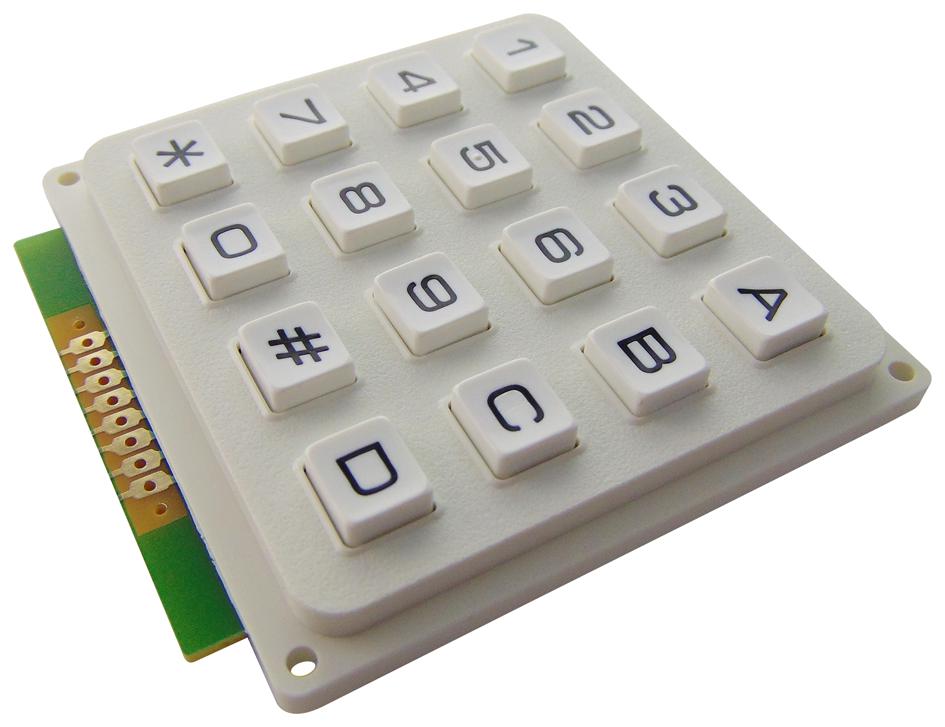

MULTICOMP MCAK1604NWWB 4x4 Matrix Keypad
The MCAK1604NWWB is a durable 4x4 matrix keypad made of white plastic, ideal for industrial control systems. It features 16 keys with a contact rating of 20mA at 24V DC, a maximum contact resistance of 200 milliohms, and an operating temperature range from 1-20°C to +60°C. The keypad's dimensions include a panel cutout of 65mm width and 57mm height, with external dimensions of 64mm depth. It has a key travel of 1.5mm, an actuating force of 100g, and a life cycle of 1,000,000 cycles per key, ensuring long-term reliability.
MULTICOMP MCAK1604NWWB 4x4 Matrix Keypad Specifications:
- Contact Rating: 20mA, 24V DC
- Max. Contact Resistance: 200 milliohms
- Life Cycle: 1,000,000 cycles per key
- Operating Temperature: 1-20°C to +60°C
- Storage Temperature: 1-40°C to +65°C
- Colour: White
- Material: Plastic
- Keypad Array: 4x4
- Keypad Output: Matrix
- Panel Cutout Width: 65mm
- Panel Cutout Height: 57mm
- External Depth: 64mm
- External Length / Height: 6.9mm
- Fixing Centres Length x Width: 60mm x 59mm
- Operating Force: 0.98N
- Travel: 1.5mm
- Actuating Force: 100 +30g
- Stroke: 21.5±0.5mm
Buy the Buy multicomp Keypad Part Number MCAK1604NWWB Online
Discover the multicomp MCAK1604NWWB 4x4 matrix keypad, designed with durable white plastic keys suitable for industrial control panels. It features a compact design with a panel cutout of 65mm by 57mm, external dimensions of 64mm depth, and a high cycle life of 1 million operations per key. Its contact rating of 20mA at 24V DC and maximum contact resistance of 200 milliohms ensure dependable switching performance. Ideal for automation, control systems, and user interfaces requiring robust input functionality in demanding environments.
Order your multicomp MCAK1604NWWB 4x4 matrix keypad today and enhance your control systems with reliable, long-lasting switching performance.
