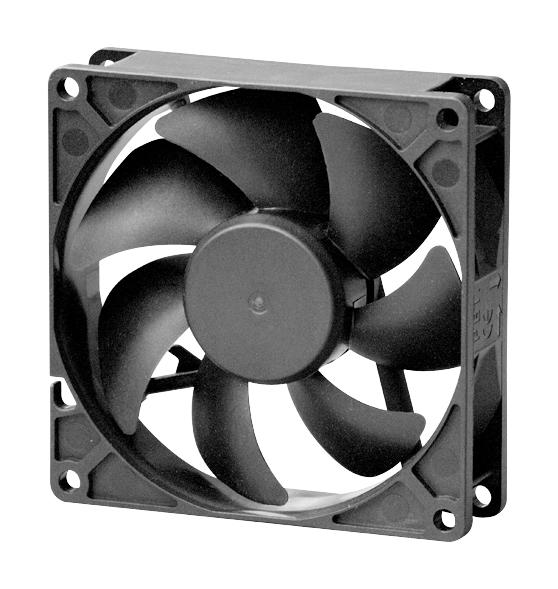

MULTICOMP MC002712 DC Axial Fan
This 92mm multicomp axial fan operates at 12V DC with a rated current of 105mA, reaching up to 121mA. It features a brushless motor, thermoplastic frame, and blade made of UL 94V-0 rated PBT, ensuring durability and RoHS compliance. Capable of delivering 45 CFM airflow at 2,700 RPM with a static pressure of 0.13 inch-H₂O, it runs quietly at 32dB. The fan's design includes a Vapo bearing system, four mounting holes, and a lifespan of approximately 60,000 hours under optimal conditions, suitable for cooling applications in electronics and equipment.
MULTICOMP MC002712 DC Axial Fan Specifications:
- Rated Voltage: 12V DC
- Rated Current: 105mA / Max. 121mA
- Rated Power Consumption: 1.26W / Max. 1.46W
- Operating Voltage Range: 4.5 to 13.8V DC
- Starting Voltage: 4.5V DC
- Operating Temperature Range: -10°C to +70°C
- Motor Type: Single Phase, 4-Pole Brushless
- Bearing System: Vapo Bearing
- Frame Material: Thermoplastic PBT of UL 94V-0
- Fan Blade Material: Thermoplastic PBT of UL 94V-0
- Rated Speed: 2,700RPM ±10%
- Air Flow: 45 CFM
- Static Pressure: 0.13 Inch-H₂O
- Acoustic Noise: 32dB(A)
- Insulation Class: UL Class A
- Life Expectancy: 60,000 Hours @ 40°C, 65% Humidity
- Weight: 92g
- Mounting Hole Diameter: 4.3mm
- Rotation Direction: Counter-Clockwise (viewed from front)
- Power Connection: #24AWG - 2 Lead Wires (+, -)
Buy the Multicomp Series DC Axial Fan: MC002712
Order the 92mm multicomp DC axial fan online now and enjoy fast delivery, competitive pricing, and the assurance of quality cooling solutions for your electronic projects. With a lifespan of 60,000 hours, this durable fan ensures long-term performance in demanding environments. Its quiet operation of 32dB makes it ideal for noise-sensitive applications. Easily integrate this fan into your devices thanks to its standard mounting holes and robust thermoplastic frame. Get reliable, efficient cooling today by purchasing this essential component online from trusted distributors.
Buy Multicomp series 92mm DC Axial Fan with 45 CFM airflow and low noise today to ensure reliable cooling performance in your electronic devices.
