MULTICOMP MCBFH2A05 Instrumentation Reed Relay
The Multi-Pole Instrumentation Reed Relay is a high-reliability device designed for industrial applications. Featuring 2 Form A (DPST-NO) and 2 Form C (DPDT) contact configurations, it utilizes sputtered Ruthenium contacts for enhanced durability and insulation resistance. Suitable for switching power up to 10W and voltages up to 200V DC, it offers fast operate times of 0.5ms and a lifespan of 500,000 operations. Its compact dimensions and temperature tolerance from -20°C to +85°C make it ideal for various instrumentation and automation tasks.
MULTICOMP MCBFH2A05 Instrumentation Reed Relay Specifications:
- Contact Form: 2 Form A (DPST-NO), 2 Form C (DPDT)
- Switching Power: 10W
- Switching Voltage: 200V DC
- Switching Current: 0.5A
- Carrying Current: 1.58A
- Contact Resistance (Initial): 150mΩ for 2 Form A, 200mΩ for 1 Form C
- Dielectric Strength: 250V DC between contacts, 1000V DC to shield
- Insulation Resistance: 1000MΩ at 100V, 25°C, 40% RH
- Capacitance: 0.8pF without shield, 0.2pF with shield guarding
- Operate Time: 0.5ms
- Release Time: 0.15ms
- Vibration: 20G
- Shock: 50G
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -40°C to +100°C
- Dimensions: 20.0 mm x 9.4 mm x 12.7 mm (L x W x H)

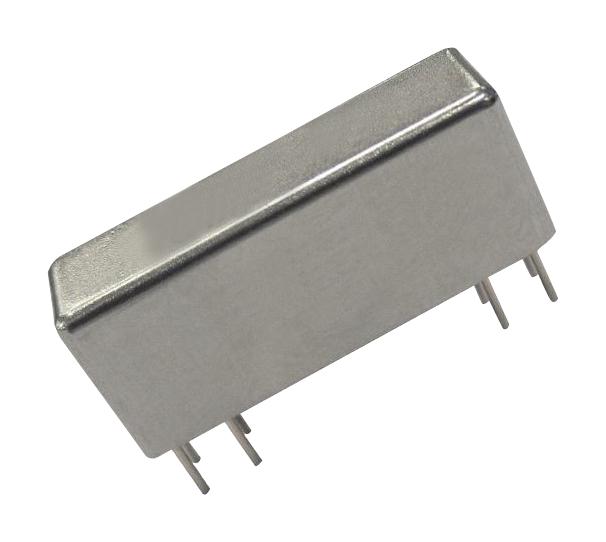

Buy the Farnell MCBFH2A05 U+2013 Reliable Instrumentation Reed Relay for Industrial Applications
Purchase the Farnell MCBFH2A05 Instrumentation Reed Relay online today and benefit from quick delivery and competitive pricing. This relay offers high durability with sputtered Ruthenium contacts, suitable for demanding industrial environments. Its 2 Form A and C contact configurations ensure versatility across various automation and control systems. With fast operate and release times, it guarantees reliable switching performance for power up to 10W and voltages up to 200V DC. Perfect for precise instrumentation, it withstands temperature ranges from -20°C to +85°C, ensuring robust operation in diverse conditions.
Order your Farnell Series MCBFH2A05 high-reliability Instrumentation Reed Relay today and enhance your industrial automation projects with dependable switching performance.
Frequently Asked Questions
Where can I buy MULTICOMP MCBFH2A05?
You can click on the BUY or RFQ button to purchase MCBFH2A05 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCBFH2A05?
You can download the MCBFH2A05 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCBFH2A05?
MULTICOMP
