MULTICOMP MCPINT18L001 Inductive Proximity Sensor
This inductive proximity sensor features a cylindrical M18 form factor with a long housing, ideal for precise metal detection in industrial settings. It operates with a sensing distance of up to 4mm, is shielded with a 5mm range, and boasts an IP67 water-resistant rating. Made of durable brass with chrome plating, it provides reliable over-current protection, suitable for measuring, counting, and RPM applications across chemical, paper, and light industry. The sensor supports NPN or PNP configurations and is easy to install with straight or standard connectors for versatile use.
MULTICOMP MCPINT18L001 Inductive Proximity Sensor Specifications:
- Style : Cylinder shape
- Sensing Distance : 0 to 4mm shielded
- Diameter : 18mm
- Mounting Distance : Shielded (5mm)
- Protection Rate : IP67, water resistant
- Electrical Connection: NPN or PNP, 3-wire, straight or standard connector options
- Current Output : s 200mA
- Power Supply : 10 to 30V DC
- Ambient temperature : -20°C to +70°C
- Material : Brass, chrome-plated
- Standard Sensing Object: ferrous metals
- Frequency : 00Hz/400Hz (DC)
- Against Polarity Reversal : Yes

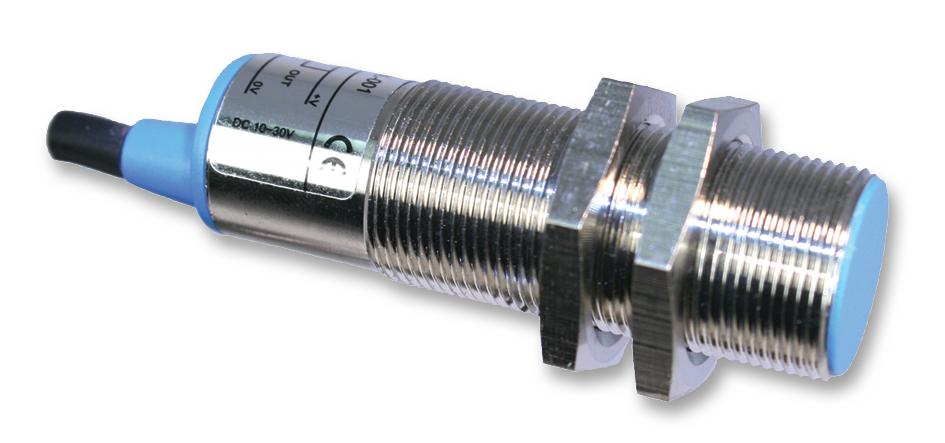

Buy the Farnell Series M18 Metal Detection Sensor: MCPINT18L001
Buy the Farnell Series M18 inductive proximity sensor online today and ensure precise metal detection in your industrial applications. Designed for durability, it features a sensing distance of 4mm, protected by IP67 water resistance. Its brass chrome-plated body provides excellent longevity in harsh environments. Compatible with NPN and PNP configurations, it is easy to install with versatile connectors. This sensor is ideal for measuring, counting, and RPM tasks, ensuring reliable performance in chemical, paper, and light industries, making it a versatile choice for automation and control systems.
Order your Farnell Series M18 metal sensor today and enhance your industrial metal detection with reliable, water-resistant proximity technology.
