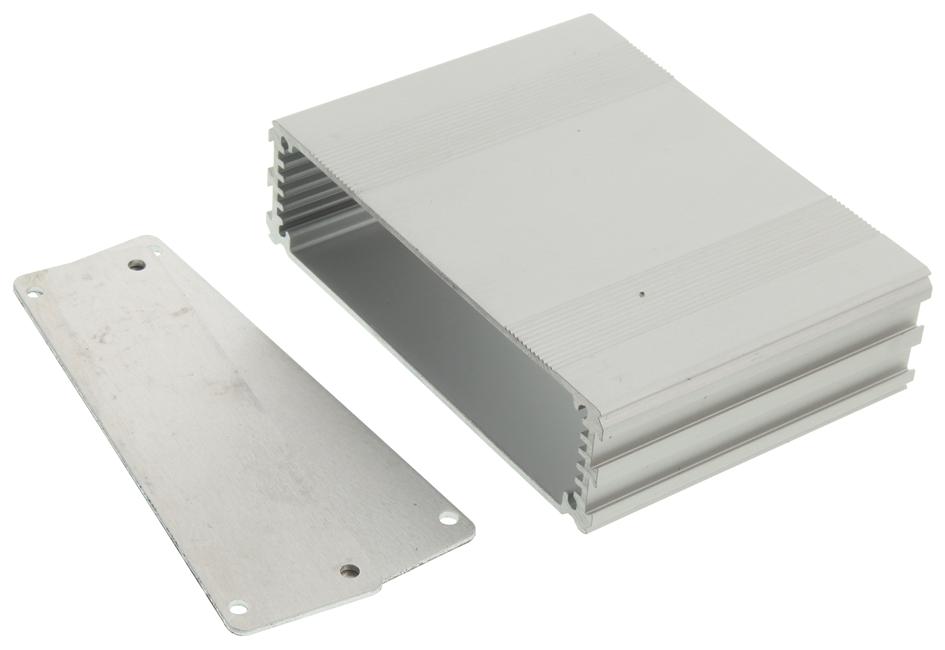

MULTICOMP MCREBS80 Aluminum Enclosure
The MCREBS80 is an extruded aluminum heat sink enclosure designed for electronic circuits. It features a silver anodized finish and an extruded box shape suitable for small circuits and RF amplifiers. The enclosure has two aesthetic grooved sides with a shallow recess between them, ideal for labeling. Its slim profile makes it suitable for space-constrained applications. The design includes dovetail slots on the sides which accept Linc-Lug mounting brackets for easy surface mounting. Optional gaskets are available for waterproofing. Made by Multicomp, it is rated highly with positive customer feedback and includes a 12-month limited warranty. The product is intended for industrial applications.
MULTICOMP MCREBS80 Aluminum Enclosure Specifications:
- Material: Aluminium 6063 T6 (HE9)
- Finish: Silver anodized 5 μm thickness to BS 1615
- Dimensions: 80 x 108.5 x 30 mm (thickness 30 mm)
- Weight: 1.38 Kg/m
- Perimeter: 316 mm outside, 306 mm inside
- Screw ports: Diameter 2.7 mm for No.4 self-tapping screw, M3 threading possible
- Length Tolerance: Nominal length -0 mm / +1 mm
- Available Non-standard Lengths
- Dovetail Slots: Accept Linc-Lug brackets for surface mounting
- Optional waterproof gaskets available
Buy the Multicomp Series Extruded Aluminum Enclosure: MCREBS80
Purchase the aluminum enclosure MCREBS80 online today for a durable, well-crafted solution to protect your electronic components. Featuring a sleek silver anodized finish, space-saving design, dovetail slots for easy mounting, and optional waterproof gaskets, this enclosure is ideal for industrial and electronic circuit applications. Its sturdy aluminum construction ensures excellent heat dissipation and longevity, while the aesthetic grooved sides allow for labeling. Buy online now to experience quick delivery and professional customer support for your project needs.
Order your Multicomp Series MCREBS80 aluminum heat sink case today and secure reliable protection for your electronic circuits with space-efficient design.
