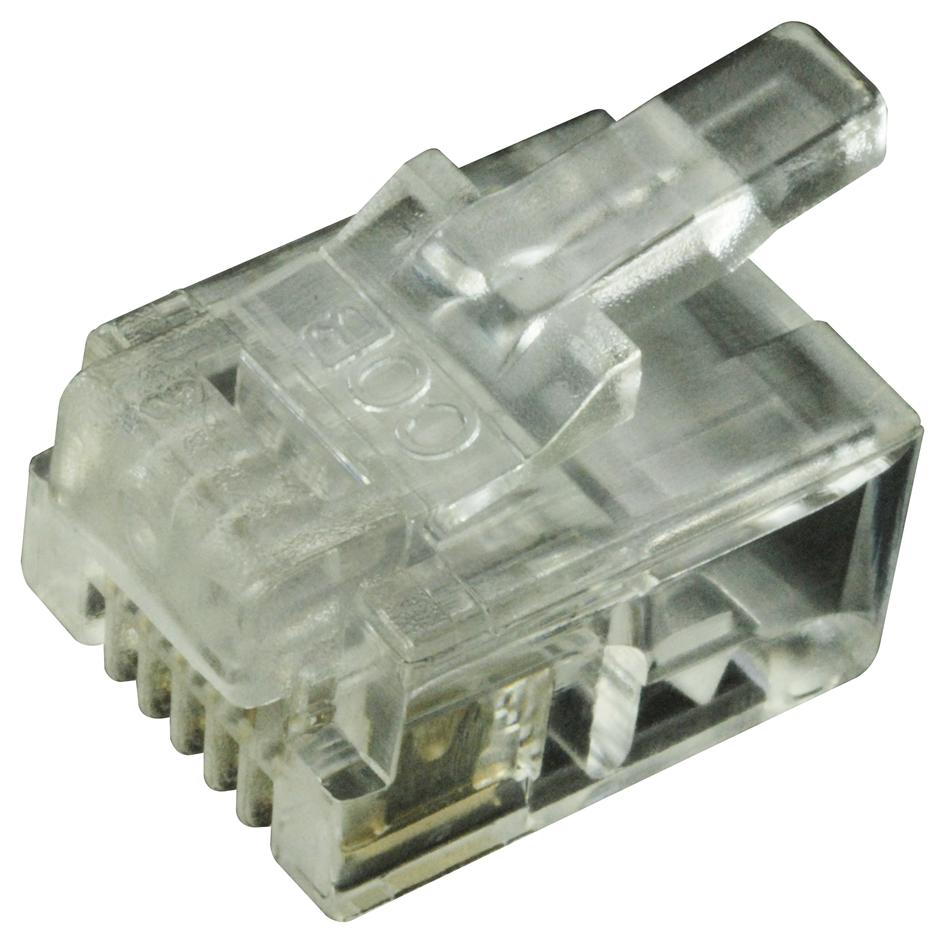

MULTICOMP MTP66U Modular Telephone Plug
The MTP-66U is a 6P6C modular telephone plug with high-quality gold over nickel plated phosphor bronze contacts and a clear polycarbonate insulator. Designed for standard oval wire sizes of 24-26 AWG and a wire range of 0.95mm to 1.02mm, it ensures reliable electrical performance with a maximum operating voltage of 150VAC and current of 1.5A. It features low contact resistance of 20 milliohms, insulation resistance of at least 500 megaohms at 500VDC, and dielectric withstand voltage of 1000VAC. Operable from -40°C to +70°C, it is ideal for telecommunications and networking, offering durable construction and environmental compliance for professional use.
MULTICOMP MTP66U Modular Telephone Plug Specifications:
- Material: Insulator - Polycarbonate; Contacts - Phosphor Bronze with 15" Gold over Nickel plating
- Electrical: Operating Voltage - 150V AC Max; Current Rating - 1.5A Max; Contact Resistance - 20mΩ Max; Insulation Resistance - 500MΩ Min at 500V DC; Dielectric Voltage - 1,000V AC for 1 minute
- Mechanical: Recommended Wire Size - 24-26 AWG; Wire Range - 0.95mm to 1.02mm; Dimensions - 0.260 inches (6.60mm) height; Length varies with model
- Environmental: Lead-free, Operating Temperature - -40°C to +70°C
Buy the Buy Premier Modular Telephone Plug Part Number MTP66U Online
Purchase the Premier MTP-66U modular telephone plug online today and enjoy fast, secure delivery. This high-quality connector features gold-plated contacts for excellent conductivity and durability. Its polycarbonate insulator ensures resilience in various environments, including temperature ranges from -40°C to +70°C. Ideal for professional telecommunications and networking setups, it offers a maximum rated voltage of 150VAC and current of 1.5A. Durable and environmentally compliant, this plug is perfect for ensuring reliable connections in your projects, backed by a 12-month warranty.
Buy Premier MTP66U modular telephone plug now and ensure reliable communication connectivity with durable, high-performance contacts.
