MULTICOMP CBSTV1808 Copper Fork Terminal

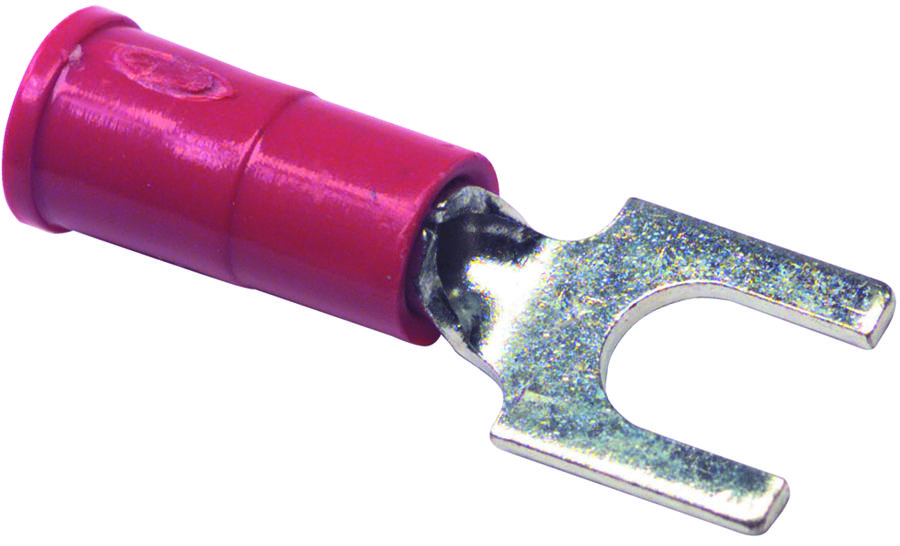

The CBS-TV-1808 is an insulated copper fork terminal with an electro-tin plated finish and a vinyl (PVC) UL94V-0 rated insulator. Designed for secure crimp connections, it features a size #8 stud/tab and accommodates wire sizes from 22 to 18 AWG. This terminal is rated for 600V and can operate within a temperature range of -40°C to 105°C. Suitable for industrial applications, it offers reliable performance and safety.
MULTICOMP CBSTV1808 Copper Fork Terminal Specifications:
- Barrel Seam: Butted
- Maximum Voltage Rating: 600 V building wire, 1,000 V signs or fixtures
- Maximum Temperature Rating: 221°F (105°C)
- Maximum Current: Same as wire
- Insulator Material: Vinyl
- Terminal Material: ETP copper
- Plating: Tin
- Wire Range: 22-18 AWG
- Stud Hole Size: #8
- Dimensions: Length 0.3 inch, Tail Length 0.25 inch, Barrel Diameter 0.145 inch
- Flammability: UL 94V-0 rated insulator
Buy the Multicomp CBS-TV-1808 – Reliable Copper Fork Terminal for Industrial Applications
Purchase the Multicomp CBS-TV-1808 copper fork terminal online now to enhance your industrial wiring safety. Featuring a vinyl insulator and rugged tin-plated copper construction, it provides dependable crimp connections for wires from 22 to 18 AWG. Rated for up to 600V and operating at temperatures up to 105°C, this terminal is ideal for electronic, electrical, and industrial applications. Buy online today and ensure your electrical assemblies meet safety standards with high-quality components.
Order your Multicomp CBS-TV-1808 terminal today and ensure secure, reliable connections for your industrial wiring projects.
