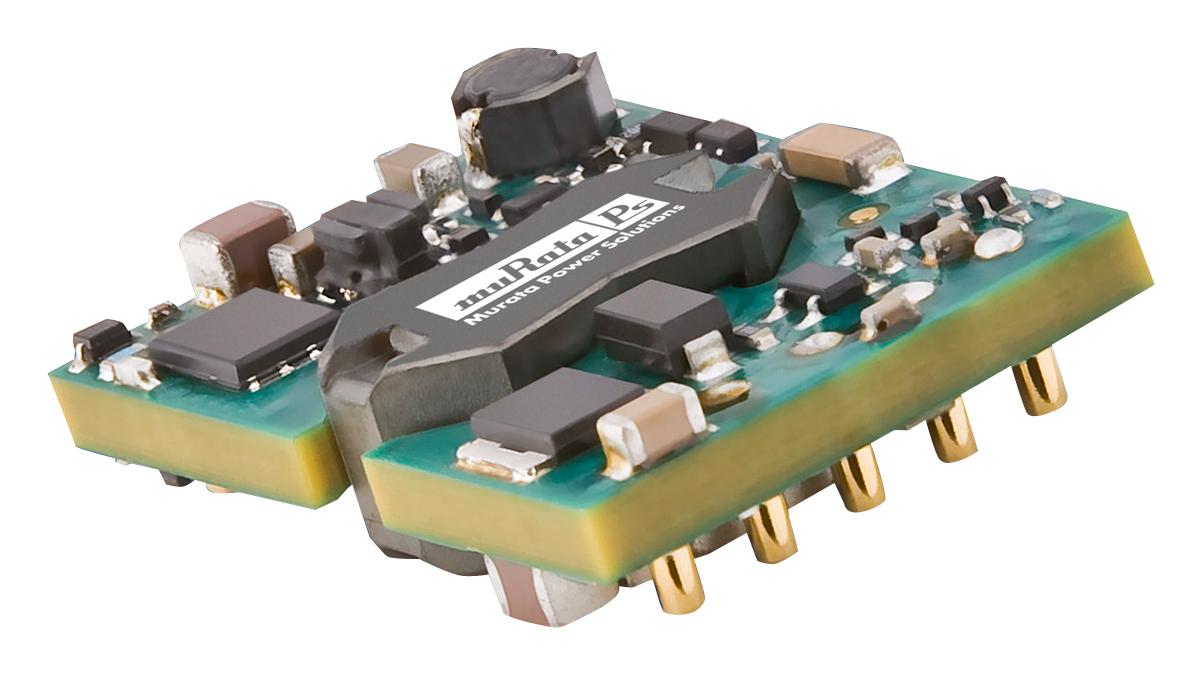

MURATA POWER SOLUTIONS UWS3315Q48NMC High-Current Isolated DC-DC Converter
The UWS series features high-efficiency, DOSA-compatible 16th-brick DC-DC converters with wide input ranges from 18 to 75V DC, delivering regulated outputs of 3.3V, 5V, or 12V. These compact open-frame modules provide up to 54W power, industry-standard pinouts, 2250V isolation, and excellent noise and ripple performance. They incorporate comprehensive protection features including overtemperature shutdown, input undervoltage lockout, output overvoltage, and hiccup-mode short-circuit protection. Suitable for datacom, telecom, and high-current applications, their synchronous flyback topology guarantees high efficiency and minimal heat generation.
MURATA POWER SOLUTIONS UWS3315Q48NMC High-Current Isolated DC-DC Converter Specifications:
- Input Voltage Range: 18-75 V DC
- Output Voltages: 3.3V, 5V, 12V (fixed; user-adjustable in some models)
- Output Power: Up to 54 W
- Isolation Voltage: 2250 V DC
- Operating Temperature Range: -40°C to +85°C with derating
- Size: 1.30 x 0.90 x 0.36 inches (33.02 x 22.9 x 9.14 mm)
- Weight: 0.48 ounces (13.6 grams)
- Efficiency: 87-91% depending on model and load
- Protection Features: Overtemperature shutdown, input undervoltage lockout, output overvoltage, hiccup short-circuit mode
- Isolation: Certified to UL 60950-1, IEC/EN60950-1
- Power Supply Type: Synchronous flyback topology
- Maximum Input Current: 1.24-2.63 A depending on input voltage and load
- Ripple & Noise: Typically below 90 mVp-p
- Mounting: Through-hole or surface-mount options available
- Compliance: RoHS-6, UL, IEC/EN safety standards
Buy the Buy Murata UWS Series DC-DC Converter Part Number UWS3315Q48NMC Online
Purchase the Murata UWS series 16th-brick isolated DC-DC converter online today to benefit from its compact size, wide input range, and industry-leading protection features. Ideal for telecom, datacom, and industrial applications, this module delivers up to 54W of regulated power with high efficiency and excellent noise performance. Features include overtemperature shutdown, input undervoltage lockout, and hiccup short-circuit protection. Reliable, certified, and easy to integrate, order now for stable power solutions in demanding environments.
Order your Murata UWS3315Q48NMC high-current high-efficiency DC-DC converter today and ensure reliable power for telecom and datacom projects with advanced protection features.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS UWS3315Q48NMC?
You can click on the BUY or RFQ button to purchase UWS3315Q48NMC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part UWS3315Q48NMC?
You can download the UWS3315Q48NMC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of UWS3315Q48NMC?
MURATA POWER SOLUTIONS
