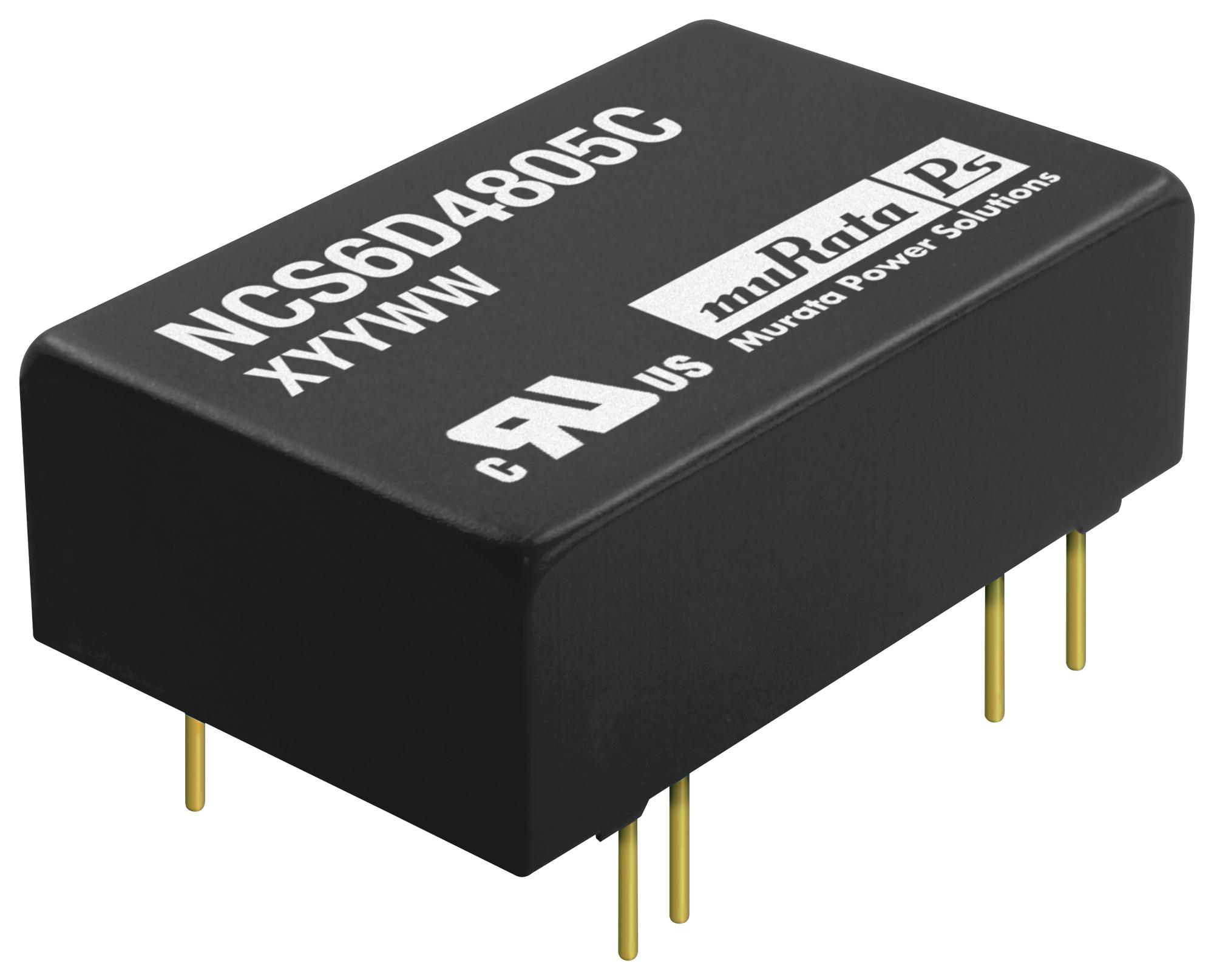

MURATA POWER SOLUTIONS NCS6D1205C DC-DC Converter
The NCS6 series are isolated 6W, 4:1 input DC-DC converters providing single and dual output options with input voltage ranges of 9-36V and 18-75V. These compact modules feature UL 60950 recognition, RoHS compliance, and offer high efficiency up to 87%. They operate in temperatures from -40°C to 85°C with excellent thermal performance, making them suitable for telecommunications, battery-powered systems, process control, and distributed power applications. They are designed for minimal ripple, noise, and outstanding electrical isolation for safe circuit interfacing.
MURATA POWER SOLUTIONS NCS6D1205C DC-DC Converter Specifications:
- Power Rating: 6W
- Input Voltage Range: 9-36V, 18-75V
- Output Power: 3.3V, 5V, 12V, 15V options
- Output Capacitance: 470uF (3.3V/5V), 220uF (12V/15V)
- Isolation Voltage: 1500VDC (1 sec), resistance 1 GΩ
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -50°C to 125°C
- Efficiency: Up to 87%
- Switching Frequency: 180 kHz
- Case Material: Metal, encapsulated
- Dimensions: 23.0mm x 20.5mm x 10.0mm approximately
- Weight: 179 grams
- Certifications: UL 60950, RoHS compliant
- Maximum Case Temperature: 105°C
- Input Voltage Surge: 80V (48V types), overvoltage protection
- Minimal Load: 10% rated load
- Ripple & Noise: Designed for low ripple/noise with recommended filtering
- Protection: Short-circuit, UVLO, thermal shutdown
Buy the Buy Murata DC-DC Converter Part Number NCS6D1205C Online
Acquire the Murata NCS6 series DC-DC converters online today to ensure a reliable power conversion solution for your distributed power systems. These high-quality modules feature an isolated 6W power supply with 4:1 input voltage range, high efficiency up to 87%, and UL recognition for safety. Designed for flexible applications including telecom, process control, and battery-powered systems, they offer excellent thermal performance and low ripple. Ordering online guarantees fast delivery and expert support for your engineering projects.
Buy Murata NCS6D1205C now and experience unmatched reliability and performance with high efficiency and robust electrical isolation.
