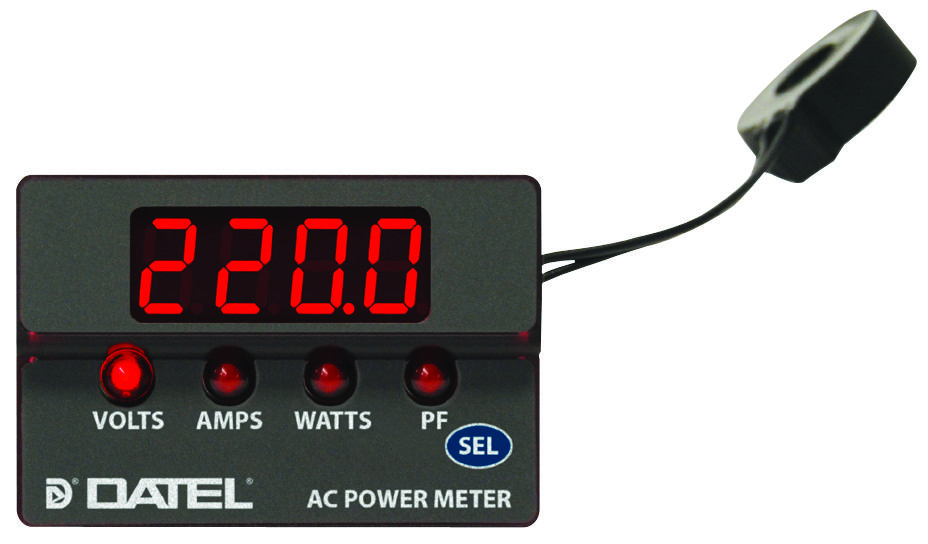

MURATA POWER SOLUTIONS ACM204AC1RC Four-Function AC Power Meter
The ACM20-4-AC1-R-C is a four-function AC power meter designed for power distribution units and power strips. It displays voltage, current, active power, and power factor, with a selectable fixed or cycling display. An optional model shows line frequency with 0.1Hz resolution. It includes built-in current transformers, providing true-RMS measurements of complex waveforms such as triangle and square waves with ±1% accuracy. Housed in a compact polycarbonate case for 0U and 1U racks, it features a bright red LED display, making it ideal for automation, power management, and process monitoring applications.
MURATA POWER SOLUTIONS ACM204AC1RC Four-Function AC Power Meter Specifications:
- Display: 4-digit LED, 9.14mm high
- Measurement Range: Voltage 85-264Vac, Current models 10A/32A/100A, Power 0-26.4kW
- Accuracy: ±1% of full scale for voltage, current, power, and power factor
- Operating Voltage: 85-264Vac, 47-63Hz
- Current Transformer Primary: 16-22 AWG wire, rated voltage 300Vac
- Dimensions: see mechanical specifications
- Housing: Polycarbonate, suitable for 0U and 1U rack mounting
- Temperature Range: 0°C to +60°C operating, -40°C to +75°C storage
- Ingress Protection: No specific IP rating, designed for indoor use
- Fusing: 0.5A/250V time delay fuse recommended
- Installation: Panel-mounted with four #2-56 threaded studs
- Compliance: UL, CSA, IEC/EN 61010-1
Buy the Murata Series ACM20 AC Power Meter: ACM20-4-AC1-R-C
Order the Murata ACM20-4-AC1-R-C online today and enhance your power management systems. This high-accuracy four-function power meter monitors voltage, current, watts, and power factor with built-in transformers, providing reliable measurements for PDUs, power strips, and rack-mounted applications. Its bright LED display ensures easy readability from a distance, while its compact design saves panel space. Perfect for automation and energy management, this model guarantees precise readings of complex waveforms, ensuring optimal performance and compliance with safety standards. Buy now for long-lasting, dependable power measurement.
Get Murata ACM20-4-AC1-R-C today—built for precision and long-lasting durability in power monitoring.
