MURATA POWER SOLUTIONS BAC1S24SC isolated power supply
The BAC1 series consists of isolated 1W regulated AC/DC converters designed for industrial and medical applications. They operate over a wide temperature range from -40°C to +85°C, supporting 115VAC, 230VAC, and 277VAC input voltages. These converters feature reinforced insulation certified by UL60950-1 to 277VAC and Demko to 240VAC, with a 4KVAC isolation test voltage. They have ultra-low standby power consumption, high efficiency up to 74%, and active protection features including short-circuit, overload, and overvoltage protections. Suitable for compact source applications requiring reliable, high-quality power conversion in demanding environments.
MURATA POWER SOLUTIONS BAC1S24SC isolated power supply Specifications:
- Power Rating: 1W
- Input Voltage Range: 85-305VAC, 70-400VDC
- Input Frequency: 47-63Hz
- Output Voltage Options: 5V, 12V, 24V
- Output Power: 1W
- Isolation Voltage: 4KVAC tested for 1 second, certified by UL60950-1, Demko
- Efficiency: Up to 74%, typical 69-73%
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: -40°C to +125°C
- Ripple & Noise: Approximately 50-120mVp-p
- Protection: Short circuit, overload, overvoltage
- Material: Sealed construction with no airflow required
- Certifications: UL60950-1, UL Recognized to 277VAC, Demko 240VAC, RoHS compliant
- Mechanical Dimensions: Compact, PCB mount, with recommended footprint and pin layout
- Shock & Vibration: Meets industrial standards, tested per IEC 60068-2-64
- Isolation Barrier: Maintains required creepage and clearance, reinforced insulation

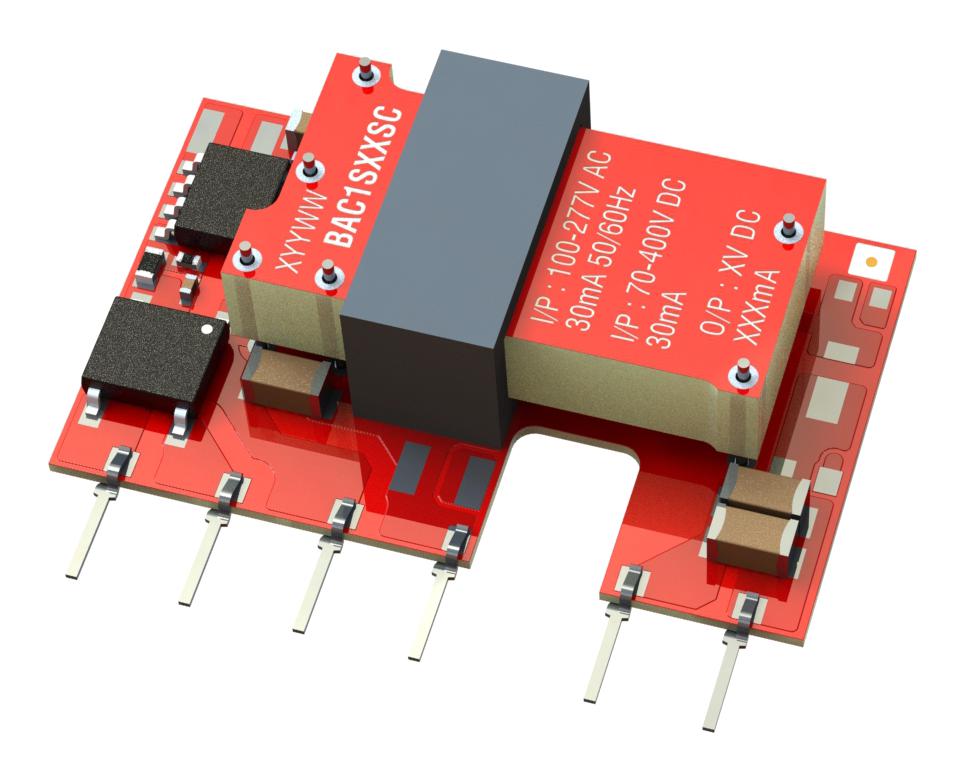

Buy the Buy Murata AC/DC Converter Part Number BAC1S24SC Online
Discover the Murata BAC1 series of power converters, offering robust and efficient 1W regulated power solutions suitable for industrial, medical, and embedded systems. Featuring reinforced insulation certified by UL and Demko to 277VAC and 240VAC respectively, these converters operate across a broad temperature range from -40°C to +85°C. With ultra-low standby power consumption, high efficiency up to 74%, and comprehensive protections, they ensure reliable operation in demanding environments. Compact and PCB mounted, they are ideal for space-constrained applications requiring high safety standards and consistent performance.
Buy Murata BAC1S24SC now and experience unmatched reliability, low standby power, and high efficiency in demanding industrial applications.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS BAC1S24SC?
You can click on the BUY or RFQ button to purchase BAC1S24SC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part BAC1S24SC?
You can download the BAC1S24SC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of BAC1S24SC?
MURATA POWER SOLUTIONS
