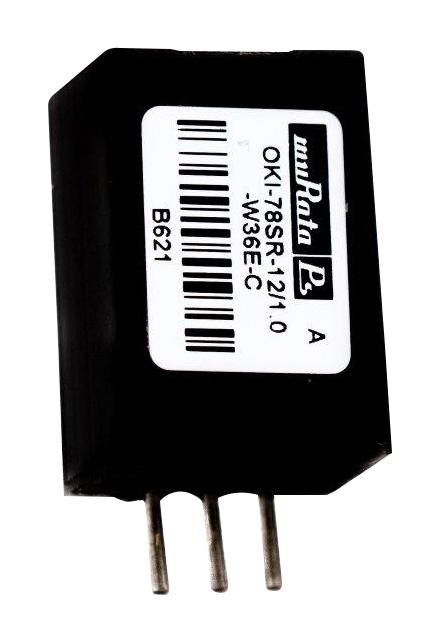

MURATA-POWER-SOLUTIONS OKI78SR1210W36EC DC-DC Buck Converter
The encapsulated non-isolated switching regulator series offers high efficiency and tight regulation, ideal for embedded applications. With small footprints of 0.47 x 0.69 inches (11.9 x 17.6 mm), these DC-DC buck converters feature input voltage ranges from 7 to 36V and output options of 3.3V, 5V, or 12V at currents up to 1.5A. They provide short circuit protection and excellent thermal performance, replacing traditional linear regulators with no external components required. Suitable for industrial, automation, and control systems, these modules simplify power design while ensuring reliability and safety compliance.
MURATA-POWER-SOLUTIONS OKI78SR1210W36EC DC-DC Buck Converter Specifications:
- Input Voltage Range: 7 - 36V DC
- Output Voltage Options: 3.3V, 5V, 12V
- Output Current: Up to 1.5A
- Power Output: 0.75W to 5.15W depending on model
- Efficiency: Up to 95.3%
- Dimensions: 0.47 x 0.69 x 0.40 inches (11.9 x 17.6 x 10.2 mm)
- Input Ripple Current: 15-50 mA pk-pk
- Ripple & Noise: 30-75 mV pk-pk
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: -55°C to +125°C
- RoHS-6 Compliant, Hazardous Material: RoHS
- Protection Features: Short circuit current limit, autorecovery in hiccup mode
- Mounting Options: Vertical or horizontal with encapsulated package
- Certifications: UL-60950-1, IEC 60950-1, IEC/EN 62368-1
- Weight: 0.16 ounces (45 grams)
Buy the Murata Power Solutions OKI-78SR-E Series – Reliable DC-DC Buck Converters for Industrial Applications
Discover Murata Power Solutions encased DC-DC buck converters from the OKI-78SR-E series, delivering high efficiency and reliable regulation for industrial and embedded applications. With input voltages from 7V to 36V and options for 3.3V, 5V, and 12V outputs at up to 1.5A, these modules significantly reduce heat dissipation compared to linear regulators. Their compact design of 0.47 x 0.69 inches makes them ideal for space-constrained environments. Built with robust short circuit protection and RoHS compliance, purchase online today for durable, high-performance power solutions that enhance your industrial projects.
Order your Murata Series OKI-78SR-12/1.0-W36E-C today and ensure your embedded systems benefit from dependable and compact power solutions.
