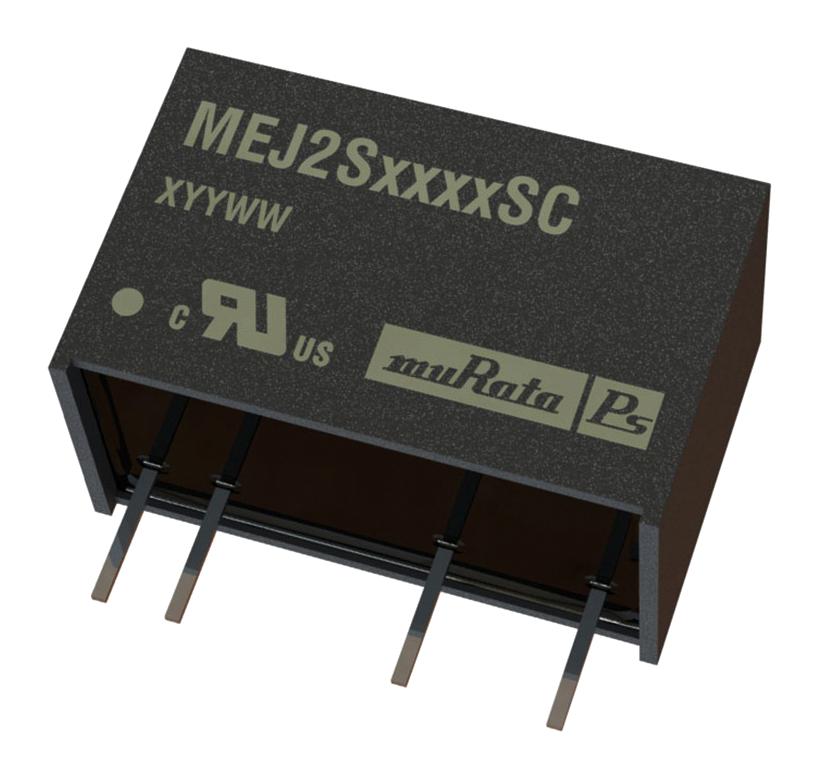

MURATA POWER SOLUTIONS MEJ2S1509SC DC/DC Converter
The MEJ2 series comprises compact, medically approved 2W isolated DC/DC converters featuring 5.2kVDC isolation, UL 60950 and UL 60601 recognition, and single or dual outputs. Designed for safety-critical applications, these encased modules operate efficiently over a wide temperature range of -40°C to 85°C. They support various input voltages including 3.3V, 5V, 12V, and 15V, with minimal start-up time and high load regulation. The converters are RoHS compatible, utilizing tin-plated terminals, and incorporate comprehensive safety and isolation features suitable for medical and industrial use.
MURATA POWER SOLUTIONS MEJ2S1509SC DC/DC Converter Specifications:
- Rated Power: 2 W
- Isolation Test Voltage: 5200 VDC
- Input Voltage Range: 3.3V, 5V, 12V, 15V
- Output Voltages: 3.3V, 5V, 9V, 12V, 15V
- Line Regulation: 1.2% maximum
- Temperature Range: -40°C to 85°C
- Case Temperature: up to 130°C with UL recognition
- Case Material: Encapsulated, RoHS compliant
- Dimensions: Length 12.65 mm, Width 9.98 mm, Height 4.60 mm
- Weight: 4.29 grams
- Fusing: External UL recognized fuse recommended
- RoHS Compliance: Yes, tin-plated terminals
- Efficiency: Up to 85% at full load
- Start-up Time: Less than 2 ms (varies by model)
Buy the Murata Series MEJ2 5.2kVDC Isolated 2W DC/DC Converters: MEJ2S1509SC
Purchase the Murata Series MEJ2 2W DC/DC Converter online today and benefit from a medical-grade, isolated power supply with 5.2kVDC isolation. This compact, high-efficiency module supports multiple input voltages, operates over a wide temperature range, and is UL recognized for safety and reliability. Its encapsulated design ensures durable performance in medical, industrial, and safety-critical environments. Extensions of UL standards, RoHS compliance, and low start-up time make it ideal for demanding applications requiring dependable power conversion and safety assurance. Get yours now for seamless integration.
Order your Murata Series MEJ2 5.2kVDC Isolated 2W DC/DC Converter today and ensure reliable power conversion for safety-critical applications.
