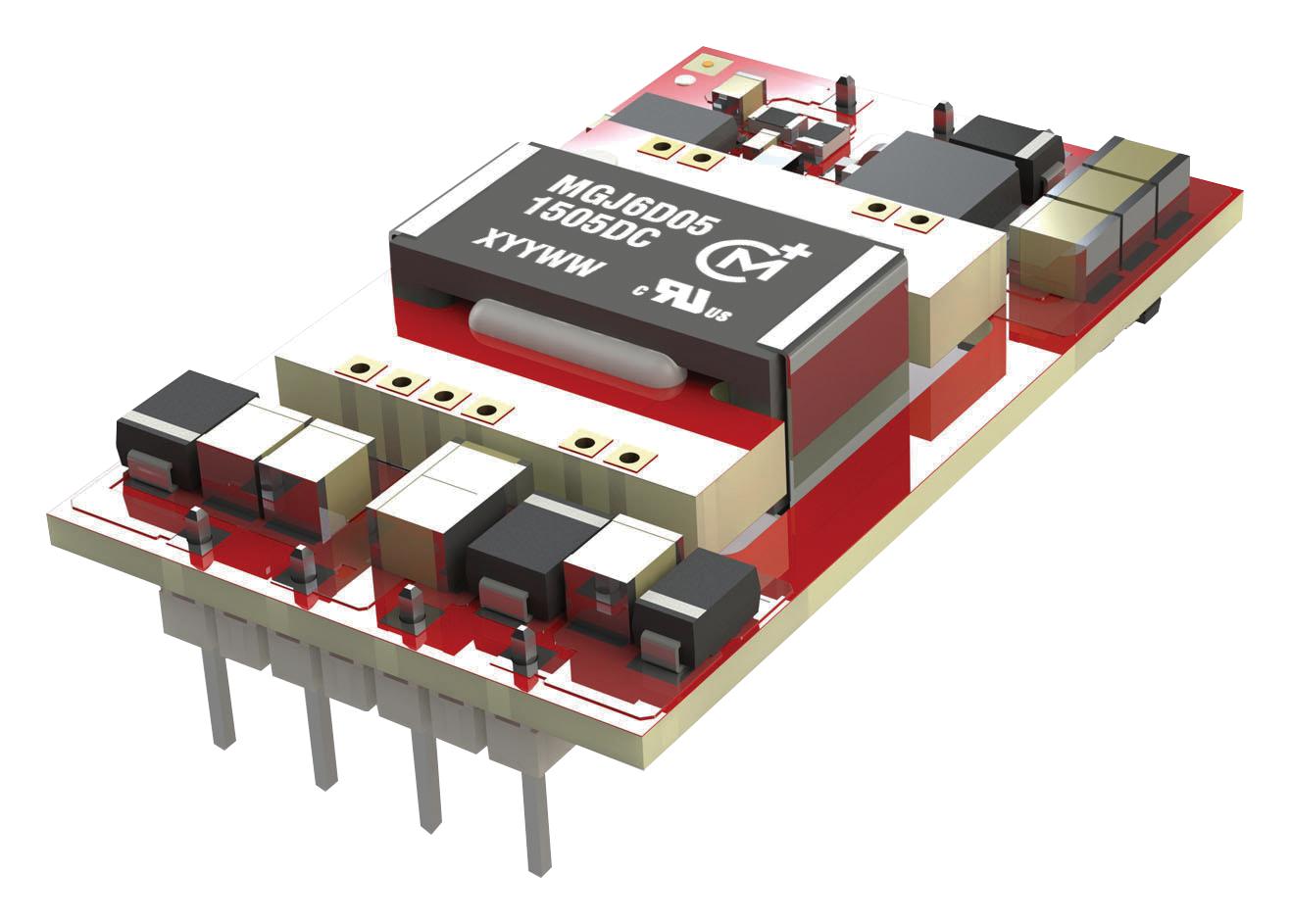

MURATA POWER SOLUTIONS MGJ6D051510DC Datasheet & Stock
The MGJ6D051510DC is a Murata Power Solutions MGJ6 series 5.2 kVDC isolated, 6W gate driver DC-DC converter. It requires no opto-feedback and features continuous short-circuit protection, characterized dv/dt immunity of 80 kV/µs at 1.6 kV, and partial discharge performance. The converter offers configurable dual output voltages, making it ideal for powering high-side and low-side gate drive circuits for IGBTs in bridge configurations. Its asymmetric output voltage options enable optimized drive levels for improved system efficiency and EMI reduction. Designed for high isolation and dv/dt requirements typical in motor drives and inverters, it includes a disable/frequency synchronization pin to simplify EMI filter design. Key features include short-circuit and overload protection, ultra-low coupling capacitance of 15 pF, a 3 kVDC DC link voltage, 5.2 kVDC isolation voltage, and a switching frequency of 100 kHz. The device maintains line regulation of 2% and total regulation of 15%, ensuring reliable performance in demanding applications.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MGJ6D051510DC?
You can click on the BUY or RFQ button to purchase MGJ6D051510DC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MGJ6D051510DC?
You can download the MGJ6D051510DC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MGJ6D051510DC?
MURATA POWER SOLUTIONS
