MURATA POWER SOLUTIONS DMS20PC1LMBC AC Line Voltage Monitor

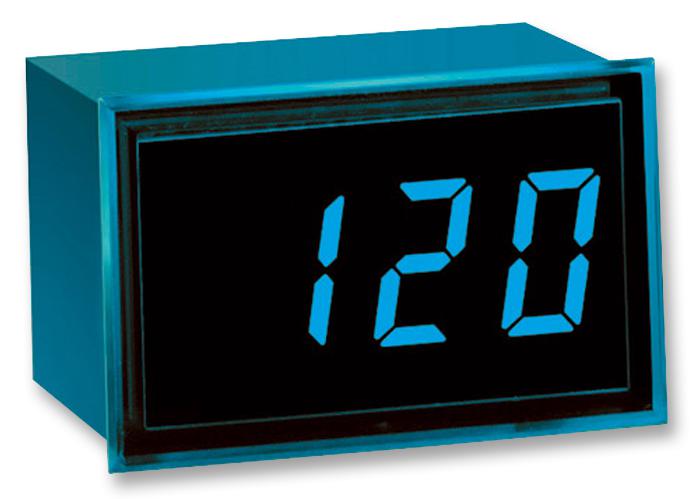

The Murata Power Solutions DMS-20PC-1-LM is a compact, self-powered AC voltmeter featuring a 3-digit LED display, capable of measuring from 85 to 264V AC. It employs half-wave sinusoidal averaging with rms calibration and provides a quick sampling rate of 2.5 readings per second. Encapsulated for harsh environments, it includes screw terminals for panel mounting or plug-in standard blade terminals. With certified safety and rugged construction, it is ideal for industrial, laboratory, and field applications requiring accurate line voltage monitoring in a small form factor.
MURATA POWER SOLUTIONS DMS20PC1LMBC AC Line Voltage Monitor Specifications:
- Input Voltage Range: 85-264V AC
- Frequency Range: 47-63Hz
- Current Consumption: 50mArms (max.)
- Sampling Rate: 2.5 readings/second
- Measurement Type: Half-wave average, rms calibrated
- Display Type: 3 digit, red LED, 0.37"/9.4mm
- Dimensions: 1.38" x 0.88" x 1.00"
- Case Material: Polycarbonate
- Overvoltage Protection: Up to 300Vac
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -40°C to +75°C
- Humidity: 0 to 95% (non-condensing)
- Fuse Rating: 0.25A/250V for panel mounts
- Certifications: UL, CSA, IEC 61010-1
- Encapsulation: Fully sealed for rugged use
Buy the Murata Series DMS-20PC-1-LM AC Voltage Monitor: DMS20PC1LM
Order the Murata DMS-20PC-1-LM online today to enhance your industrial, laboratory, or field-testing setup. Its small size, rugged encapsulation, and easy mounting make it ideal for precise AC voltage measurements. With simple plug-in or panel mount options and UL certification, this reliable meter provides accurate readings without need for auxiliary power. Immediate delivery ensures you can maintain optimal voltage supervision in any environment, making it an essential tool for engineers and technicians.
Buy Murata DMS-20PC-1-LM now and experience unmatched reliability and performance in AC line voltage measurement with its compact, rugged design.
