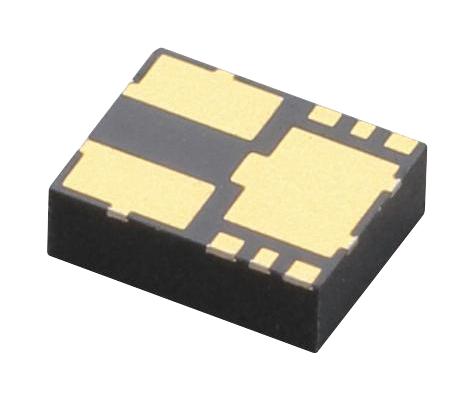

MURATA POWER SOLUTIONS MYRGM120150B31RA DC/DC Converter
The MYRGM120150B series is a high-efficiency, inductor-integrated step-down DC/DC converter capable of delivering up to 1.5A of output current. Designed for compact applications like portable devices, tablets, and mobile communication, it features a wide input voltage range of 2.7V to 5.5V and internally fixed output voltages from 0.8V to 3.6V. It employs synchronous rectification at 3.0 MHz for high-speed transient response, with built-in protection functions including UVLO, thermal shutdown, and short circuit protection. The device ensures reliable operation with low power consumption and supports various switching control modes like PWM and automatic PWM/PFM switching for optimal efficiency and performance in space-constrained environments.
MURATA POWER SOLUTIONS MYRGM120150B31RA DC/DC Converter Specifications:
- Input Voltage: 2.7V to 5.5V
- Output Voltage: 0.8V to 3.6V (fixed options)
- Output Current: 1.5A
- Oscillation Frequency: 3.0MHz
- Efficiency: up to 92.9% at Vin=5V, Vout=3.3V/500mA
- Quiescent Current (MYRGM-W): 0 to 28μA, (MYRGM-B): 25-40pA
- Power Dissipation: within thermal limits, protected against over-temperature
- Protection Functions: UVLO at 2.00V, thermal shutdown at 150°C, short circuit latch
- Control Modes: PWM (MYRGM-W), PWM/PFM automatic switching (MYRGM-B)
- Switching Frequency: 3.0 MHz
- Package Size: 2.5mm x 3.2mm x 1.0mm
- Operating Temperature: -49°C to +105°C
- Supports low ESR ceramic output capacitors, RoHS, lead-free, halogen-free
Buy the Murata Series PicoBK DC-DC Converter: MYRGM120150B
Enhance your projects with the Murata PicoBK series MYRGM120150B inductor built-in step-down DC/DC converter. Offering 1.5A output current, a wide input voltage of 2.7V to 5.5V, and fixed output options from 0.8V to 3.6V, this compact device ensures reliable power conversion for mobile devices, tablets, and communication gadgets. Its high-frequency switching at 3.0 MHz delivers fast transient response, combined with power-saving features like low quiescent current, UVLO, thermal shutdown, and short-circuit protection. Ideal for space-constrained design, it guarantees efficiency and stability in various operating conditions.
Order your Murata Series PicoBK MYRGM120150B today and give your portable electronics the dependable power they deserve with high efficiency and compact design.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MYRGM120150B31RA?
You can click on the BUY or RFQ button to purchase MYRGM120150B31RA from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MYRGM120150B31RA?
You can download the MYRGM120150B31RA datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MYRGM120150B31RA?
MURATA POWER SOLUTIONS
