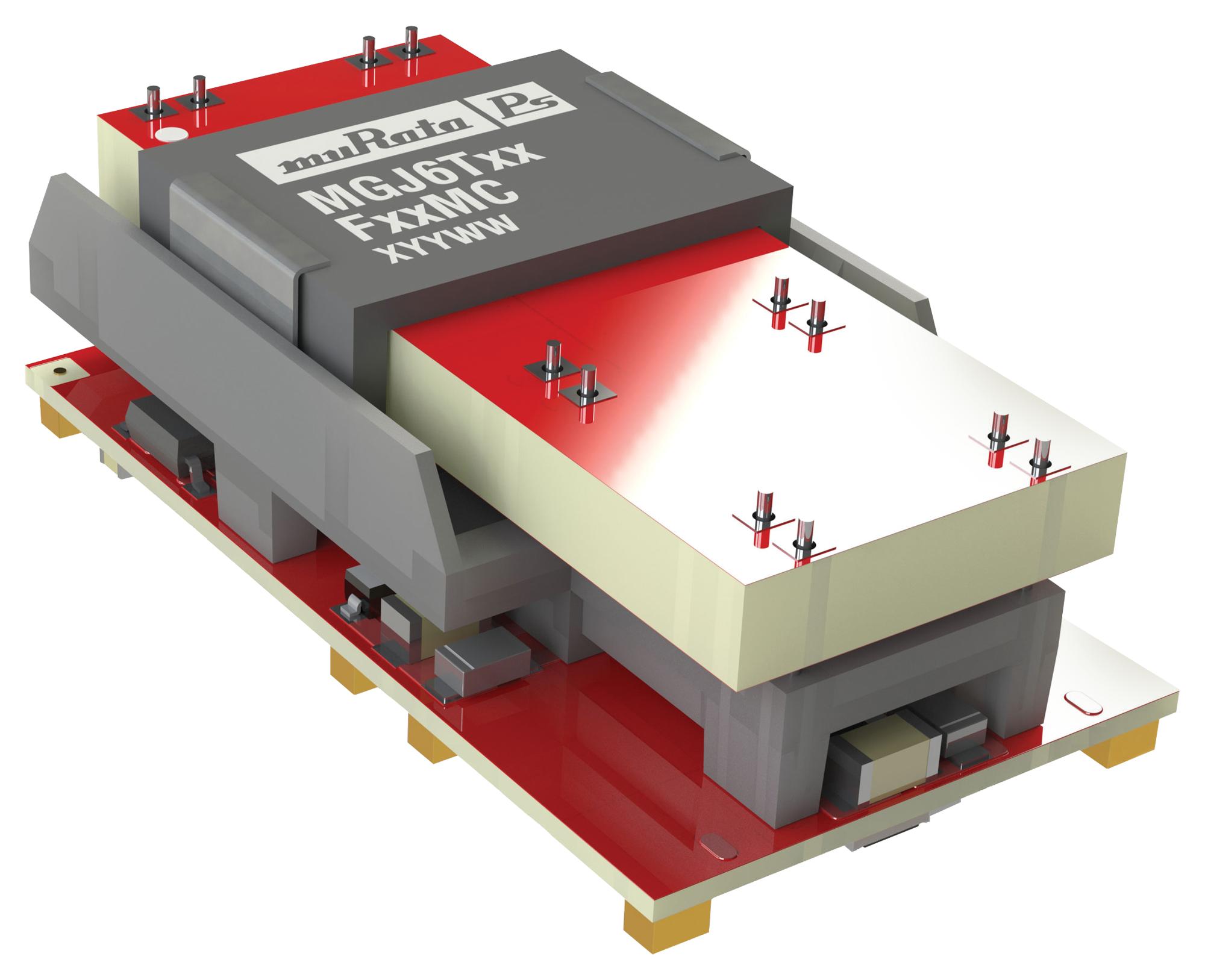

MURATA POWER SOLUTIONS MGJ6T05F24MCR7 High Voltage Gate Drive Converter
The MGJ6T05F24MCR7 is a fully isolated, triple output gate drive DC-DC converter series offering 5.7KVDC isolation voltage and 6W power output. Designed for high-side and low-side gate drive circuits in IGBT, Silicon, and Silicon Carbide MOSFET full bridge systems, it features reinforced insulation compliant with UL60950, UL acknowledgment pending, and ANSI/AAMI ES60601-1. The series supports 24V, 12V, and 5V input voltages, with excellent dv/dt immunity, low coupling capacitance, and overcurrent protection. Its mechanical design includes tape and reel packaging, with robust safety ratings suitable for motor drives, inverters, and telecom applications.
MURATA POWER SOLUTIONS MGJ6T05F24MCR7 High Voltage Gate Drive Converter Specifications:
- Isolation Voltage: 5.7KVDC (flash tested for 1 second from input to output, 4KVAC RMS; qualification at 5.7KVDC for 1 minute)
- Power Output: 6W
- Input Voltage Range: 5V (4A), 12V (24A), 24V (14A)
- Output Voltages: VHA, VHB, VL (nominal 24V, 24V, 24V)
- Switching Frequency: 100 kHz
- Operating Temperature: -40°C to +105°C
- Storage Temperature: -55°C to +150°C
- Relative Humidity: 85% at 85°C
- Protection: Continuous short-circuit protection
- Isolation Capacitance: 15pF (primary to each output)
- Creepage & Clearance: 8mm (input to output and across outputs)
- Mechanical Packaging: Tape and reel, 13-inch reel, 723 units per reel
- Compliance: Pending UL recognition, RoHS compliant, MSL2 PSL R7F
