MURATA POWER SOLUTIONS BAC1S05SC Power Converter
The BAC1 series by Murata Power Solutions are isolated 1W regulated AC/DC converters designed for industrial and medical applications. Operating over a wide temperature range of -40°C to +85°C, these converters support input voltages from 85V to 305VAC and 70V to 400VDC, with efficiencies up to 74%. They feature reinforced insulation, low standby power, and comply with multiple safety standards including UL60950-1, EN60950-1, and ANSI/AAMI ES60601-1. Mechanical dimensions and pin configurations facilitate easy integration into various electronic systems, making them ideal for demanding environments requiring reliable power conversion.
MURATA POWER SOLUTIONS BAC1S05SC Power Converter Specifications:
- Power Rating: 1W
- Input Voltage: 85-305VAC / 70-400VDC
- Output Voltage: 5V, 12V, or 24V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +125°C
- Isolation Voltage: 4KVAC test, reinforced insulation certified for 277VAC
- Efficiency: up to 74%
- Dimension: Compact, pin configuration detailed in datasheet
- Protection: Short-circuit, overcurrent, and overload protected
- Standby Power: 58-92mW depending on model
- Certification: UL60950-1, EN60950-1, ANSI/AAMI ES60601-1 pending recognition
- Wave Solder Profile: ≤270°C for 7 seconds, RoHS compliant
- Surge & Transient Protection: Included with MOV components
- Leakage Current: 1 μA at 230VAC
- Isolation: Reinforced insulation with creepage of 8.3mm and clearance of 6.6mm

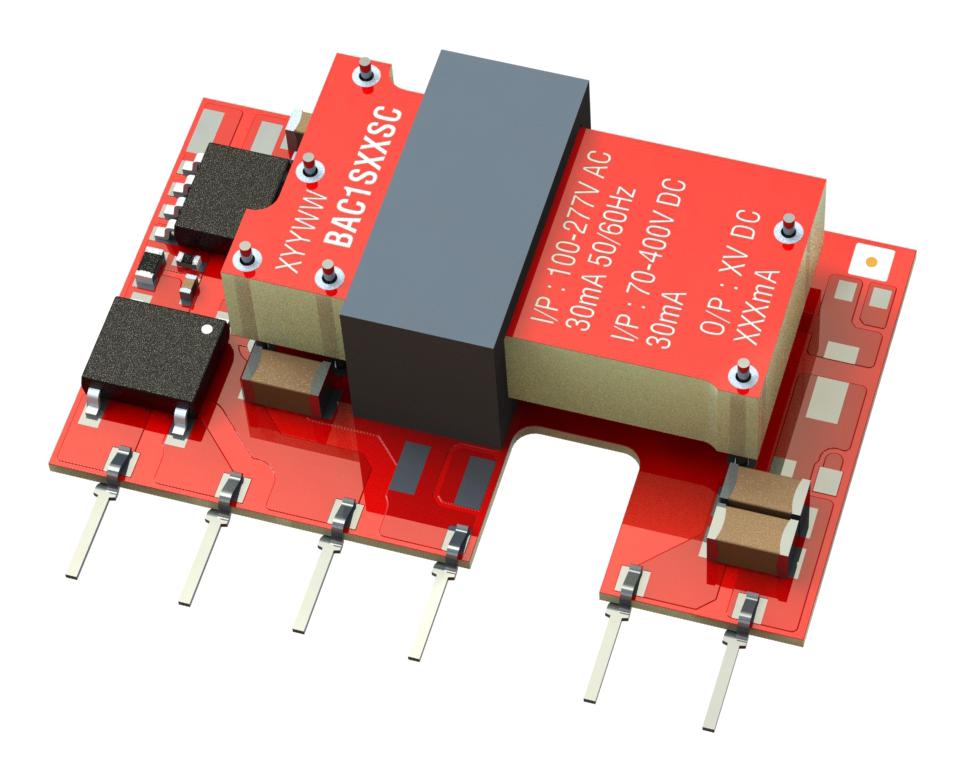

Buy the Murata Series BAC1 Isolated Power Supply: BAC1S05SC
Purchase the Murata BAC1 series single output AC/DC converter today online for your industrial or medical project. These high-performance converters operate over a wide temperature range from -40°C to +85°C, ensuring reliable power in demanding environments. Featuring reinforced insulation, low standby power, and multiple safety certifications including UL and EN standards, they provide efficient and safe energy conversion. Their compact design with detailed pin configurations simplifies system integration. Trust Murata for quality power solutions—order now to ensure your device’s stable operation and compliance.
Order your Murata Series BAC1S05SC reliable power converter today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS BAC1S05SC?
You can click on the BUY or RFQ button to purchase BAC1S05SC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part BAC1S05SC?
You can download the BAC1S05SC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of BAC1S05SC?
MURATA POWER SOLUTIONS
