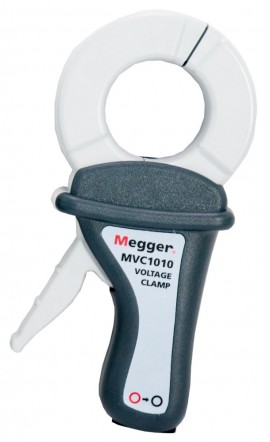

MEGGER 1010518 Current Clamp
The MCC1010 and MVC1010 are high-performance AC current clamps capable of measuring currents up to 1000 A with a 1000:1 step-down ratio. Designed for power, energy, and power quality analysis, these clamps feature excellent accuracy of 0.3% at full range and minimal phase shift of 0.7°, utilizing high-permeability FeNi alloy cores. They are rated CAT IV 600 V per IEC standards, with overload protection, large jaws for conductors up to 52 mm, and are suitable for a wide range of applications including power analyzers, oscilloscopes, and leakage current measurements. The output signal is scaled at 1 mV per 1 A primary current, compatible with multimeters and specialized testers for non-contact current sensing and resistance testing.
MEGGER 1010518 Current Clamp Specifications:
- Step-down current ratio: 1000:1
- Sensitivity: 1mA/A
- Accuracy (full scale): 0.3% with 1 A-10 A load, 0.5% for 10 A-100 A, 0.7° phase shift
- Maximum continuous current: 1000 A at <500 Hz, 100 A at >500 Hz
- Frequency bandwidth: 15 Hz—10 kHz
- Maximum output voltage: <28 V peak
- Working voltage: <600 V rms
- Maximum conductor diameter: 52 mm
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +70°C
- Dimensions: 45 mm x 110 mm x 218 mm
- Weight: 700 g
- Environmental protection: IP40 with jaws closed
- Safety rating: CAT IV 600 V IEC 61010-1:2010 standards
- Load impedance: <1 Ω (burden resistance)
Buy the Buy Megger Current Clamp Part Number 1010518 Online
Purchase the Megger MCC1010 and MVC1010 current clamps online today for accurate, reliable AC current measurements up to 1000 A. These clamps feature high accuracy of 0.3%, minimal phase shift, and CAT IV 600 V safety rating, making them ideal for power quality analysis, leakage current testing, and non-contact current sensing. Their robust design includes large jaws for conductors up to 52 mm diameter, protective voltage limiting circuits, and compatibility with multimeters and specialized testers. Ensure safer, precise measurements with Megger's trusted current clamps for professional electrical diagnostics.
Order your Megger MCC1010 and MVC1010 clamps today and ensure precise, safe measurement for power quality, leakage currents, and high-current applications.
