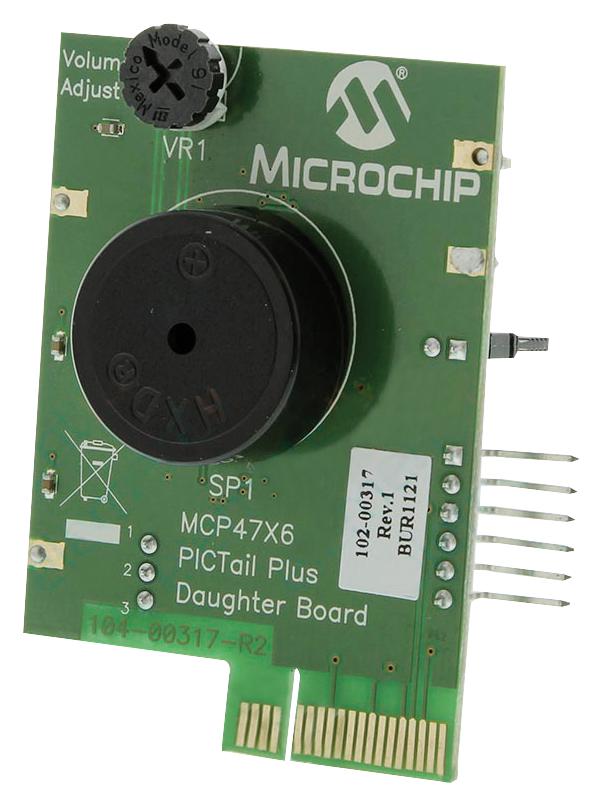

Microchip Technology ADM00317 DAC Daughter Board
The MCP47X6 PICtail Plus Daughter Board features MCP4706, MCP4716, and MCP4726 DACs, controlled via I2C using either the Explorer 16 or PICkit serial analyzer. It offers test points for SCL, SDA, and Vout, and includes an audible buzzer connected to the 12-bit MCP4726 DAC, with volume adjustment. Designed for applications in motor control, sensing, consumer electronics, and signal processing, this versatile daughter board facilitates easy communication, testing, and evaluation of DAC features in embedded systems.
Microchip Technology ADM00317 DAC Daughter Board Specifications:
- DAC devices: MCP4706 (8-bit), MCP4716 (10-bit), MCP4726 (12-bit)
- Interface: I2C serial communication
- Control connectors: J3 for Explorer 16, J1 for PICkit Serial Analyzer
- Test points: SCL, SDA, Vout for each DAC
- Buzzer: Piezo element connected to MCP4726 output, volume adjustable via VR1
- Power supply: 5V DC, via jumper or external Vpp
- Dimensions: Compact design suitable for embedded applications
- Monitoring: Test points for oscilloscope or multimeter measurements
- Applications: Motor control, sensing, signal processing, consumer electronics
Buy the Microchip Series Daughter Board: MCP47X6: ADM00317
Enhance your electronic projects with the versatile DAC daughter board featuring MCP4706, MCP4716, and MCP4726. Compatible with Explorer 16 and PICkit serial analyzer, it offers reliable I2C communication, accessible test points, and an integrated buzzer with volume control. Ideal for electronics testing, signal processing, sensing, and motor control applications, this compact, easy-to-use module provides precise DAC control, monitoring options, and seamless firmware interfacing to elevate your development and prototyping efforts.
Order your Microchip Series Daughter Board ADM00317 today and give your projects the dependable quality they deserve in signal control and testing.
