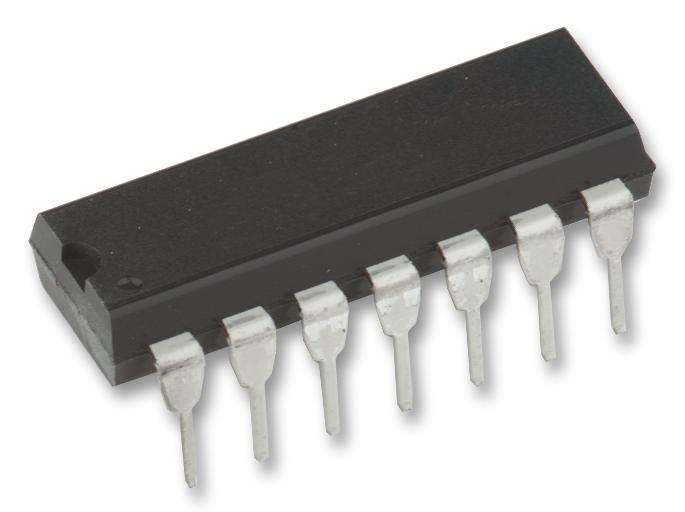

Microchip Technology MCP42010IP Dual Digital Potentiometer
The MCP42010IP is a dual digital potentiometer with 256 taps, available in 10 kΩ resistance value. It features an industry-standard SPI interface, low power CMOS technology, and operates in a wide voltage range from 2.7V to 5.5V. Suitable for precision adjustments in automation, audio controls, and instrumentation, this device offers consistency with less than 1% channel-to-channel resistance matching, linear wiper movement, and excellent temperature stability from -40°C to +125°C. Its compact package options include 8-pin PDIP, SOIC, and TSSOP, making it ideal for space-constrained applications requiring reliable digital potentiometry.
Microchip Technology MCP42010IP Dual Digital Potentiometer Specifications:
- Resistance Value: 10 kΩ
- Taps: 256
- Supply Voltage Range: 2.7V to 5.5V
- Operating Temperature Range: -40°C to +125°C
- Wiper Resistance: approximately 52Ω (10kΩ version)
- Resistance Tolerance: channel-to-channel matching less than 1%
- Package Options: 8-pin PDIP, SOIC, TSSOP
- Control Interface: Industry-standard SPI (mode 0,0 and 1,1)
- Power Consumption: static current less than 1 μA
- Linearity: ±1 LSB maximum INL & DNL
- Temperature Stability: typically 800 ppm/°C
- Package Dimensions: various per model, compact sizes suitable for space-constrained designs
- Application Range: industrial, automation, audio control, instrumentation
Buy the Microchip MCP42010 U+2013 Reliable Digital Potentiometer for Industrial Applications
Purchase the Microchip MCP42010 dual digital potentiometer online today to enhance your electronic projects with reliable, high-precision variable resistors. Featuring 256 taps and a wide voltage range from 2.7V to 5.5V, this device ensures consistent performance in industrial, automation, and audio applications. Its industry-standard SPI interface simplifies integration into your control systems, while its compact package options save space. Invest in the MCP42010 for accurate, stable resistance adjustments with low power consumption and excellent temperature stability from -40°C to +125°C, perfect for space-sensitive, high-reliability designs.
Get Microchip MCP42010 today—built for precision and long-lasting durability in digital control systems.
Frequently Asked Questions
Where can I buy Microchip Technology MCP42010IP?
You can click on the BUY or RFQ button to purchase MCP42010IP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP42010IP?
You can download the MCP42010IP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP42010IP?
Microchip Technology
