Microchip Technology MCP6023EP High-Speed Operational Amplifier
The MCP6023-E/P is a high-performance operational amplifier featuring a gain bandwidth of 10 MHz, low quiescent current of approximately 1.0 mA, and low offset voltage below 0.5 mV. It offers rail-to-rail input and output, operates on a single supply voltage as low as 2.5 V, and uses advanced CMOS technology for low bias current and high-speed operation. With low noise (8.7 nV/√Hz at 10 kHz), stable unity gain, a chip select pin, a 1/2 Vcc voltage reference, and THD of 0.00053%, it's suitable for automotive, audio, and measurement systems.
Microchip Technology MCP6023EP High-Speed Operational Amplifier Specifications:
- Gain Bandwidth Product: 10 MHz
- Input Offset Voltage: < 0.5 mV
- Supply Voltage Range: 2.5V to 5.5V
- Low Quiescent Current: 1.0 mA (typical)
- Noise Density: 8.7 nV/√Hz at 10 kHz
- Total Harmonic Distortion: 0.00053%
- Rail-to-Rail Input/Output
- Stability: Unity gain stable
- Chip Select Pin: Yes
- Voltage Reference (Vcc/2): Yes

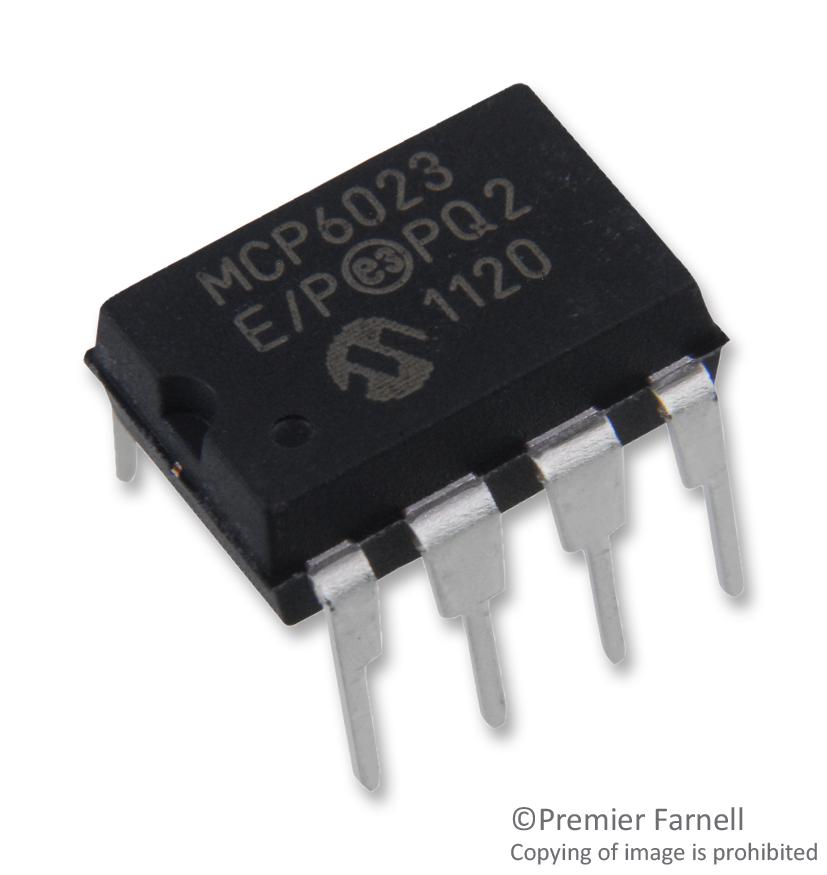

Buy the Microchip Series MCP6023 High-Speed Op Amp: MCP6023EP
Experience the exceptional performance of the Microchip MCP6023EP operational amplifier. Designed for precision and efficiency, it features a 10 MHz bandwidth, rail-to-rail input/output, and ultra-low offset voltage, making it ideal for automotive, audio, and measurement systems. Its advanced CMOS technology ensures low bias current and high-speed operation, while the chip select pin contributes to power savings. Easy to use and reliable, this amplifier offers low noise density of 8.7 nV/√Hz at 10 kHz, making it a perfect choice for your high-performance electronics projects.
Get Microchip MCP6023EP today—built for precision, low power consumption, and versatile performance in demanding applications.
Frequently Asked Questions
Where can I buy Microchip Technology MCP6023EP?
You can click on the BUY or RFQ button to purchase MCP6023EP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP6023EP?
You can download the MCP6023EP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP6023EP?
Microchip Technology
