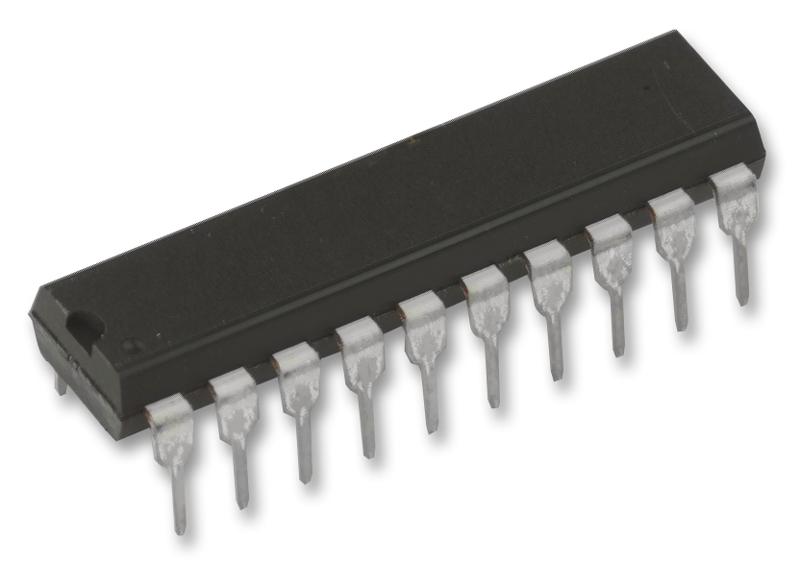

Microchip Technology PIC16F1507IP High-Performance Microcontroller
The PIC16F1507 is an 8-bit microcontroller featuring a high-performance RISC CPU, multiple timers, a 10-bit ADC, PWM modules, a configurable logic cell, and support for various clock sources. It includes power management, reset functions, and in-circuit programming capabilities, suitable for industrial, automotive, and consumer applications requiring flexible I/O, low power consumption, and robust performance in compact packages.
Microchip Technology PIC16F1507IP High-Performance Microcontroller Specifications:
- Package: 20-Pin QFN, UQFN, SSOP or PDIP; dimensions vary with package type
- Operating Voltage: 1.8V to 3.6V (LF) / 2.3V to 5.5V (F)
- Operating Temperature Range: -40°C to +85°C (industrial), -40°C to +125°C (extended)
- Clock Sources: Internal HFINTOSC (up to 16 MHz), LFINTOSC (31 kHz), external clock (EC modes)
- Timers: Timer0, Timer1 (16-bit), Timer2 (8-bit) with prescalers
- Analog-to-Digital Converter: 10-bit resolution, 14 channels
- PWM Modules: 4 channels with programmable period and duty cycle
- Configurable Logic Cell: 4 modules with multiple logic functions
- Numerically Controlled Oscillator: frequency division with 16-bit accumulator
- Reset Features: Power-on Reset, Brown-out Reset, Watchdog Timer, Stack overflow/underflow reset
- In-Circuit Serial Programming™ (ICSP™) for firmware updates
- Low Power Modes: Sleep, Low-Power Sleep with internal LDO, adjustable wake-up timing
- Support for analog and digital I/O, with optional pull-ups, analog select, and alternate functions
- Extensive interrupt support with automatic context saving for timers, ADC, and logic modules
Buy the Buy Microchip PIC16F1507 Microcontroller Part Number PIC16F1507 Online
Purchase the Microchip PIC16F1507 microcontroller online today for reliable, high-performance operation in embedded systems. With its efficient RISC CPU, integrated 10-bit ADC, four PWM channels, and extensive timer and logic modules, this microcontroller provides excellent flexibility for industrial, automotive, and consumer applications. Its robust power management, multiple clock sources, and in-circuit programming support streamline development and deployment. Optimize your design with this versatile device and enjoy fast delivery and comprehensive support for your project needs.
Order your Microchip PIC16F1507 microcontroller today and give your projects the dependable quality they deserve with advanced features and flexible power options.
Frequently Asked Questions
Where can I buy Microchip Technology PIC16F1507IP?
You can click on the BUY or RFQ button to purchase PIC16F1507IP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC16F1507IP?
You can download the PIC16F1507IP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC16F1507IP?
Microchip Technology
