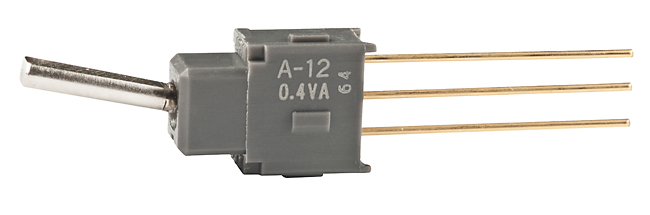

NKK Switches A12EW Toggle Switch
The A12EW is a compact, space-saving subminiature toggle switch optimized for electronic control in tight spaces. Crafted with high-quality materials, it offers reliable switching performance for low-voltage, low-current logic-level circuits. Its totally sealed body construction prevents contact contamination, ensuring long-term durability and consistent operation. Ideal for use in circuit boards, automation systems, and electronic devices, this switch supports automated soldering and cleaning processes, making it suitable for modern manufacturing environments. It features a sturdy design for excellent contact stability and a smooth actuation mechanism, enhancing overall system reliability.
NKK Switches A12EW Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 min
- Mechanical Life: 100,000 operations min
- Electrical Life: 50,000 operations min
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for .394" toggle
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials: Glass fiber reinforced polyamide, nickel plated brass, phosphor bronze with gold plating
- Environmental Resistance: -30°C to +85°C, 90-95% humidity for 240 hours, mechanical shock 50G
- Mounting: PC board with terminal spacing 2.54mm
- Soldering: Wave, manual, automation compatible
- Standards & Certifications: Not UL or CSA certified
- Dimensions: 0.394 inch (10.0mm) bat, 0.248 inch (6.3mm) bat, terminal spacing conforms to standard PCB grid
Buy the NKK Series A Toggle Switch: A12EW
Purchase the NKK Series A toggle switch A12EW online today for your electronic control needs. Its compact size makes it ideal for space-constrained assemblies, providing dependable switching performance. The sealed construction prevents contamination, ensuring longevity and consistent operation in demanding environments. Support for automated soldering and cleaning processes reduces manufacturing time and costs. Designed for low-voltage, low-current logic circuits, it offers excellent contact stability and durability. Enhance your electronics with this reliable toggle switch, available for purchase online with fast, secure shipping.
Order your NKK Series A toggle switch A12EW today and give your electronic projects reliable, space-saving control solutions.
Frequently Asked Questions
Where can I buy NKK Switches A12EW?
You can click on the BUY or RFQ button to purchase A12EW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A12EW?
You can download the A12EW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A12EW?
NKK Switches
