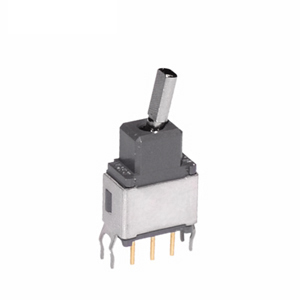

NKK Switches A13HB Toggle Switch
This is a subminiature toggle switch designed for precise control applications. It features a compact form factor suitable for limited-space environments, providing reliable switching performance.
NKK Switches A13HB Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC between contacts & case for 1 minute
- Mechanical Life: 100,000 operations minimum for certain circuits
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for .394" toggle
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials: Glass fiber reinforced polyamide, nickel plated brass, phosphor bronze, brass
- Temperature Range: -30°C to +85°C
- Environmental Tests: 90-95% humidity for 240 hours, shock resistance up to 50G
- Soldering: Wave and manual soldering recommended
- Standards & Certifications: Not UL or CSA tested, designed for low-voltage circuits
Buy the NKK A13HB – Reliable Toggle Switch for Industrial Applications
Purchase the NKK A13HB toggle switch online today and enhance your control system with a reliable, compact, and precise switching solution. Designed for limited-space environments, this switch ensures excellent electrical performance, durability, and ease of installation. With a space-efficient form factor and high durability, it is ideal for industrial automation and control panels. Enjoy fast delivery and excellent customer support when you buy online—upgrade your equipment effortlessly with this dependable toggle switch.
Buy NKK A13HB toggle switch now and experience unmatched reliability and space-saving performance for your control systems.
Frequently Asked Questions
Where can I buy NKK Switches A13HB?
You can click on the BUY or RFQ button to purchase A13HB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A13HB?
You can download the A13HB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A13HB?
NKK Switches
