NKK Switches WT11L Environmentally Sealed Toggle Switch
The WT11L is a premium environmentally sealed panel-mount toggle switch designed for demanding industrial environments. Featuring ON-None-OFF functionality, it includes wire-lead terminals, a chrome-plated brass toggle, and fiberglass-reinforced polyamide bushing and outer case for durability. The switch employs a specialized contact mechanism to minimize bounce and ensure reliable operation across circuits 11, 12, 21, and 22. It provides IP60 to IP67 protection with epoxy sealing, has UL94V-0 flammability rating, and withstands temperatures from -30°C to 70°C. Ideal for harsh conditions, it guarantees long-lasting, high-performance switching with a minimum of 50,000 mechanical and 15,000 electrical operations.
NKK Switches WT11L Environmentally Sealed Toggle Switch Specifications:
- Electrical Capacity: 10A @ 125V AC, 6A @ 250V AC, 10A @ 30V DC
- Contact Resistance: 10 milliohms maximum for solder lug & screw terminal models, 30 milliohms maximum for wire lead models
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,500V AC minimum for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 15,000 operations minimum
- Temperature Rating: -30°C to +70°C
- Protection Ratings: IP60 for solder lug & screw lug models, IP67 for wire lead models
- Toggle Material: Brass with chrome plating
- Bushing & Outer Case: Fiberglass reinforced polyamide (UL94V-0)
- Inner Case: Melamine
- Sealing Rings: Nitrile butadiene rubber, Natural rubber
- Wire Lead Material: Heat resistant polyvinyl chloride (AWG 16)
- Operating Humidity: 90-95% for 96 hours @ 40°C
- Vibration & Shock: 10-55Hz frequency, 50G acceleration
- Soldering: Manual soldering, typical 1.47Nm torque
- Certifications: UL94V-0, UL, CSA

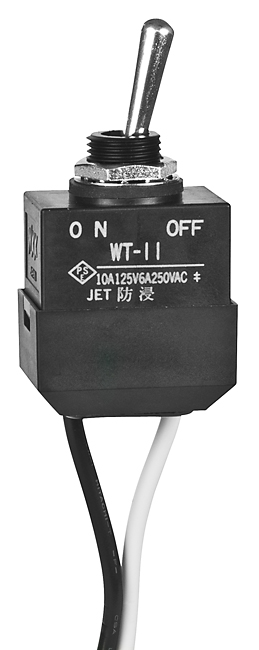

Buy the Buy NKK WT11L Part Number WT11L Online
Discover the NKK WT11L environmentally sealed toggle switch available online. It features IP67 protection, ON-None-OFF functionality, and high durability for harsh environments. With UL94V-0 flammability rating, rear sealing, and a specialized contact mechanism for reliable switching, it is ideal for industrial control panels. It guarantees a minimum of 50,000 mechanical operations and 15,000 electrical operations, ensuring longevity and dependable performance under extreme conditions. Purchase today for top-quality industrial switch solutions with rapid delivery and excellent support.
Order your NKK WT11L Environmentally Sealed Toggle Switch today and ensure reliable, durable switching in your toughest industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches WT11L?
You can click on the BUY or RFQ button to purchase WT11L from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part WT11L?
You can download the WT11L datasheet or visit the NKK Switches website for support.
Who is the manufacturer of WT11L?
NKK Switches
