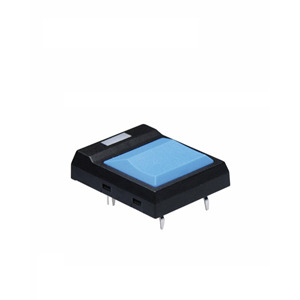

NKK Switches JF15RP3GF Illuminated Tactile Switch
Ultra-thin tactile switch with illumination designed for PCB applications, ideal for compact electronic devices needing reliable tactile feedback and visual cues. Featuring minimal height of 5.7mm, diverse LED illumination options, and durable construction, this switch ensures long-term performance and easy automated soldering. Its crisp tactile dome contact provides audible feedback for circuit confirmation, making it suitable for space-constrained environments in consumer electronics, industrial controls, and automation systems. Compatibility with wave and manual soldering enhances manufacturing flexibility, while robust sealing prevents contact contamination for high reliability.
NKK Switches JF15RP3GF Illuminated Tactile Switch Specifications:
- Height from PCB to top: 5.7mm (0.224 inches)
- Electrical Capacity: 50mA @ 24V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Durability: 500,000 operations minimum
- Actuator Height: 0.4mm for flush, 0.8mm for sculptured
- Materials: Polycarbonate or polyamide for housing; phosphor bronze and brass contacts
- Sealing: Rubber seal construction prevents contact contamination
- Operating Temperature: -13°F to +158°F (-25°C to +70°C)
- Humidity: 90–95% for 96 hours @ 40°C
- Mechanical Force: 3.0N for flush, 2.0N for sculptured
- Travel: 0.4mm for flush, 0.8mm for sculptured actuator
- LED: Red, green, yellow with spot or full face illumination
- LED Forward Voltage: 2.0–2.3V, Max Current: 30-40mA
- Terminals: Straight PC, 2 PC Terminations
- Compatibility: Wave soldering, manual soldering, automated cleaning
- Mounting: Secure crimped terminals, conforming to standard PCB grid
Buy the NKK Series JF Illuminated Tactile Switch: JF15RP3GF
Purchase the NKK Series JF illuminated tactile switch now to incorporate a space-efficient, reliable tactile interface into your electronics. Its ultra-thin profile of just 5.7mm ensures seamless integration in compact designs, offering crisp tactile feedback and clear LED illumination options. Designed for PCB assembly, it supports wave and manual soldering while preventing contact contamination with its rubber seal. Perfect for consumer electronics, industrial automation, and control panels, this switch guarantees long-lasting operation and consistent performance in demanding environments.
Order your NKK Series JF15RP3GF illuminated tactile switch today and enhance your electronic devices with reliable tactile feedback and visual indication.
Frequently Asked Questions
Where can I buy NKK Switches JF15RP3GF?
You can click on the BUY or RFQ button to purchase JF15RP3GF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JF15RP3GF?
You can download the JF15RP3GF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JF15RP3GF?
NKK Switches
