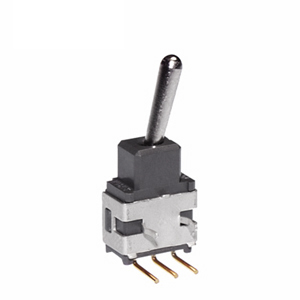

NKK Switches A15AH Subminiature Toggle Switch
A15AH is a compact subminiature toggle switch engineered for space-sensitive electronic applications. It offers dependable switching in a small size, ideal for panels and devices requiring reliable, low-current control components in low-voltage logic circuits. This switch features a sealed body to prevent contact contamination and allows efficient assembly with automated soldering and cleaning processes, enhancing manufacturing efficiency. Suitable for low-voltage, low-current applications, it ensures precise operation and stable performance in varied environmental conditions, making it a versatile component in electronic circuit control and device automation.
NKK Switches A15AH Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC between contacts and case for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Operating Force: 1.47N (momentary); 1.18N (maintained) for .394” toggles, 2.73N (momentary); 1.84N (maintained) for others
- Materials & Finishes: Glass fiber reinforced polyamide toggle, nickel plated brass housing, phosphor bronze contacts with gold plating, brass terminals
- Temperature Range: -30°C to +85°C
- Humidity Resistance: 90-95% for 240 hours @ 40°C
- Vibration Resistance: 10-55Hz with peak-to-peak amplitude of 1.5mm for 1 minute, in 3 directions
- Shock Resistance: 50G acceleration
- Soldering: Wave soldering recommended, manual soldering profile B, automated cleaning
- Standards: The switch is designed for low-voltage, low-current, logic-level circuits and not UL or CSA rated
Buy the NKK Series A Subminiature Toggle Switch: A15AH
Purchase the NKK A15AH subminiature toggle switch online today to enhance your electronic device's reliability and control precision. Its space-saving design is perfect for compact panels and low-voltage logic circuits, providing durable, contamination-resistant switching performance. Ideal for automation and electronic control applications, this switch ensures seamless operation under various environmental conditions. With easy online ordering, benefit from fast delivery and manufacturer-backed quality, making it an essential component for your precise electronic control needs.
Buy NKK A15AH toggle switch now and experience unmatched reliability and performance in compact electronic controls.
