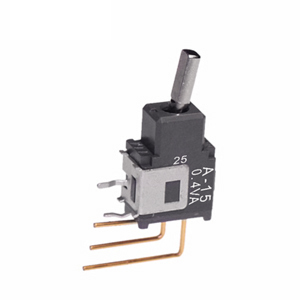

NKK Switches A15HV Subminiature Toggle Switch
This compact and space-efficient subminiature toggle switch is engineered for low-voltage, low-current applications, offering reliable ON/OFF switching. Its sealed body prevents contact contamination, ensuring longevity and consistent performance in electronics and control systems. Designed with a sturdy brass finish and nickel plating, it features a smooth, positive detent actuation, ideal for space-restricted environments. The switch supports automated soldering and cleaning, making it suitable for PCB assembly. Suitable for logic-level circuits, it guarantees safe operation without hazardous energy. Its durable construction withstands harsh conditions, providing dependable, long-lasting service in various industrial and electronic applications.
NKK Switches A15HV Subminiature Toggle Switch Specifications:
- Mechanical Life: 100,000 operations
- Electrical Life: 50,000 operations
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum between contacts and case
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for 0.394-inch toggles
- Materials & Finishes: Brass with Bright Nickel; glass fiber reinforced polyamide for insulating parts
- Environmental: -30°C to +85°C, 90-95% humidity, vibration, and shock resistance
- Soldering: Wave, manual, or automated according to specified profiles
- Dimensions: 0.394 inches (10.0mm) toggle height, terminal spacing 0.100 inches (2.54mm)
- Certifications: Not tested for UL or CSA certification
- Support: Support bracket recommended for PCB mounting stability
Buy the NKK Series A Subminiature Toggle Switch: A15HV
Order the NKK A15HV subminiature toggle switch online now to ensure reliable low-voltage switching in your electronic projects. Its compact size and sealed body make it ideal for space-constrained environments requiring consistent performance. Suitable for automated soldering and cleaning, it fits seamlessly into PCB assemblies, providing durable ON/OFF operation for control and automation systems. Enhance your electronic components with this high-quality switch today—long-lasting, dependable, and engineered for demanding applications.
Get NKK A15HV toggle switch today—designed for space-efficient applications with reliable ON/OFF performance and sealed construction.
Frequently Asked Questions
Where can I buy NKK Switches A15HV?
You can click on the BUY or RFQ button to purchase A15HV from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A15HV?
You can download the A15HV datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A15HV?
NKK Switches
