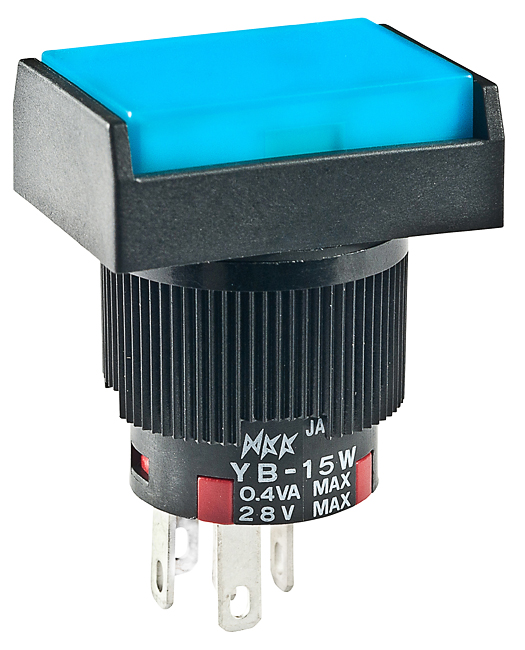

NKK Switches YB15WRKG01GB Illuminated Pushbutton
This illuminated pushbutton features a compact short body design with panel sealing, ideal for panel mounting applications. It provides reliable illumination with LED options in multiple colors, offering easy tactile operation and long service life. The switch has high resistance to dust and oil, meeting IP65 standards, and includes features such as a keylock for security and snap-action contacts for durability. Its robust construction ensures stable performance in industrial environments, making it a versatile component for control panels and machinery operation.
NKK Switches YB15WRKG01GB Illuminated Pushbutton Specifications:
- Housing Material: Polycarbonate
- Illumination: LED, multiple colors available
- Mounting: Panel seal mounting, with panel thickness range of 0.02" to 0.197"
- Operating Temperature Range: -25°C to +50°C
- Electrical Ratings: 3A at 125/250V AC, 0.4VA at 28V AC/DC
- Switch Configuration: Single pole
- Terminal Type: Solder lug or quick connect
- Ingress Protection: IP65 (dust and oil tight)
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations
- Travel: Pretravel 0.059" (1.5mm), total travel 0.118" (3.0mm)
- Certifications: UL Recognized, CSA Certified when ordered with markings
- Certifications Number: File No. E44145, 023535_0_000
Buy the NKK Series YB15WRKG01GB Illuminated Pushbutton Switch: Durable Panel Mounting Tool
Enhance your control panel with the reliable illuminated pushbutton featuring IP65 sealing, LED illumination options, and long mechanical and electrical life. Designed for easy panel mounting, it offers tactile feedback, security with keylock options, and versatile installation with solder lug or quick connect terminals. Suitable for harsh industrial settings, this switch ensures consistent performance, high resistance to dust and oil, and compliance with UL and CSA standards. Order now to improve control panel efficiency and durability.
Get NKK Short Body Pushbuttons today—built for precision, durability, and seamless control in industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches YB15WRKG01GB?
You can click on the BUY or RFQ button to purchase YB15WRKG01GB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB15WRKG01GB?
You can download the YB15WRKG01GB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB15WRKG01GB?
NKK Switches
