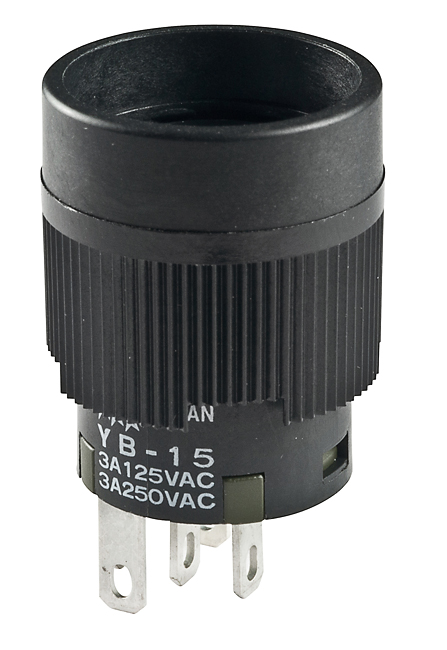

NKK Switches YB15CKW01 Short Body Pushbutton
A short, illuminated pushbutton designed for panel mounting applications. Suitable for various control and switch interface needs.
NKK Switches YB15CKW01 Short Body Pushbutton Specifications:
- Housing Material: UL94V-0 Glass fiber reinforced polyamide
- Contact Resistance: 50 milliohms maximum for silver contacts
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary circuit
- Electrical Life: 200,000 operations minimum for maintained circuit
- Nominal Operating Force: 1.47N for non-sealed, 1.67N for sealed
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total Travel 3.0mm
- Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Mounting Torque: 0.785Nm maximum
- Housing Finish: Matte
- Mounting: Bushing or snap-in mounting options
- Standards & Certifications: UL Recognized, CSA Certified, IEC IP65 panel seal models
- Terminal Types: Solder lug, quick connect
Buy the Buy NKK YB15CKW01 Short Body Pushbutton Part Number YB15CKW01 Online
Purchase NKK short body pushbuttons online today to enhance your control panel efficiency. These durable, illuminated switches feature high cycle life, IP65 sealing, and easy mounting options—perfect for automation systems and industrial control. With quick delivery and quality assured, upgrading your control interface has never been easier. Ensure your machines and panels operate reliably with these industry-grade switches. Shop now and get the best in control switching technology at your fingertips.
Buy NKK short body pushbuttons now and experience unmatched reliability and performance in industrial control panels.
Frequently Asked Questions
Where can I buy NKK Switches YB15CKW01?
You can click on the BUY or RFQ button to purchase YB15CKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB15CKW01?
You can download the YB15CKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB15CKW01?
NKK Switches
