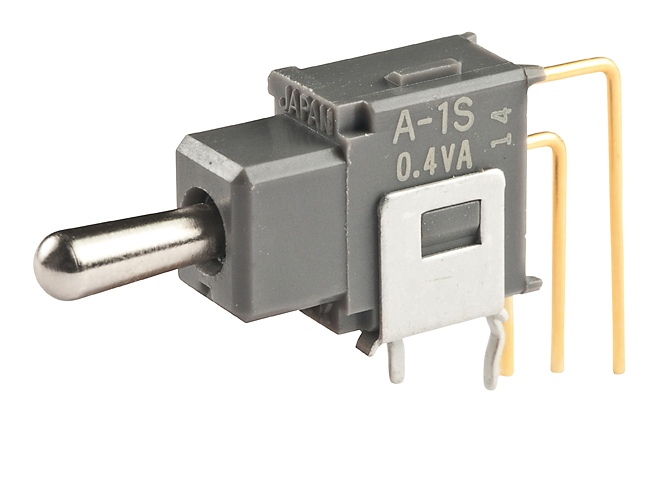

NKK Switches A1SJV Subminiature Toggle Switch
Subminiature toggle switch designed for precision and compact applications. Suitable for various electronic devices requiring reliable switching in limited space. Features sealed body construction, high contact stability, and is specifically developed for low-voltage, logic-level circuits, ensuring safety and long-term durability with over 100,000 mechanical operations. Made with high-quality materials including brass with bright nickel finish, glass fiber reinforced polyamide, and tin-plated phosphor bronze contacts, this toggle switch offers excellent environmental resistance, easy PCB mounting, and compatibility with automated soldering and cleaning processes. Ideal for space-constrained electronic systems needing dependable performance.
NKK Switches A1SJV Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Operating Force: 1.47N (momentary), 1.18N (maintained) for 0.394” toggle; 2.73N (momentary), 1.84N (maintained) for all others
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Material: Glass fiber reinforced polyamide, nickel plated brass, phosphor bronze with gold plating
- Environmental Resistance: -30°C to +85°C, 90–95% humidity for 240 hours, vibration and shock tested
- Soldering: Wave and manual soldering recommended, automated cleaning compatible
- Standards & Certifications: Designed for low-voltage, low-current logic circuits, not UL or CSA certified
Buy the NKK Series A Subminiature Toggle Switch: A1SJV
Purchase your NKK Series A Subminiature Toggle Switch online now and enjoy dependable, space-efficient switching for your electronic designs. Designed for low-voltage circuits, it offers sealed construction, high contact stability, and long mechanical life, ensuring safety and durability. Perfect for limited space environments, this switch is compatible with automated soldering and cleaning, reducing production time and costs. Trust NKK's reliable toggle switches to enhance your projects with superior performance and safety standards. Buy online today for fast delivery and quality assurance.
Order your NKK Series A Subminiature Toggle Switch today and give your electronic projects the reliable, space-saving switching performance they deserve.
Frequently Asked Questions
Where can I buy NKK Switches A1SJV?
You can click on the BUY or RFQ button to purchase A1SJV from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A1SJV?
You can download the A1SJV datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A1SJV?
NKK Switches
