NKK Switches FF0116BBCAEA01 Emergency Stop Switch
The FFO1 Series Low Profile Emergency Stop Switches feature a compact design with a 16mm body and shortest behind panel depth of only 13.6mm, making them ideal for high-density panel layouts. They are IP65 rated for dust and water jet protection, with actuators available in 25mm and 30mm diameters. Designed for reliable safety operations, these switches incorporate a sliding latch mechanism and rugged construction. Suitable for factory automation, machine control, and safety applications, they operate efficiently within an ambient temperature range of -45°C to +80°C, meeting IEC standards for durability and environmental protection.
NKK Switches FF0116BBCAEA01 Emergency Stop Switch Specifications:
- Actuator Diameter: 25mm or 30mm
- Housing Material: Glass fiber reinforced polyamide
- Contact Material: Silver alloy copper with gold plating
- Contact Rating: 0.5A @ 24V DC
- Insulation Voltage: 36V DC
- Impulse Withstand Voltage: 2.5kV
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 100 megohms min @ 500V DC
- Mechanical Life: 100,000 operations
- Operating Force: Push to lock 10.8N; Pull to reset 8.5N
- Mounting Torque: 785 mN·m
- Seal Rating: IP65 (IEC 60529)
- Operating Temperature Range: -45°C to +80°C
- Vibration Resistance: 10–500Hz, amplitude 0.35mm
- Shock Resistance: 1,000 m/s²
- Pollution Degree: 3
- Standards & Certifications: EN 60947-5-1, EN 60947-5-5

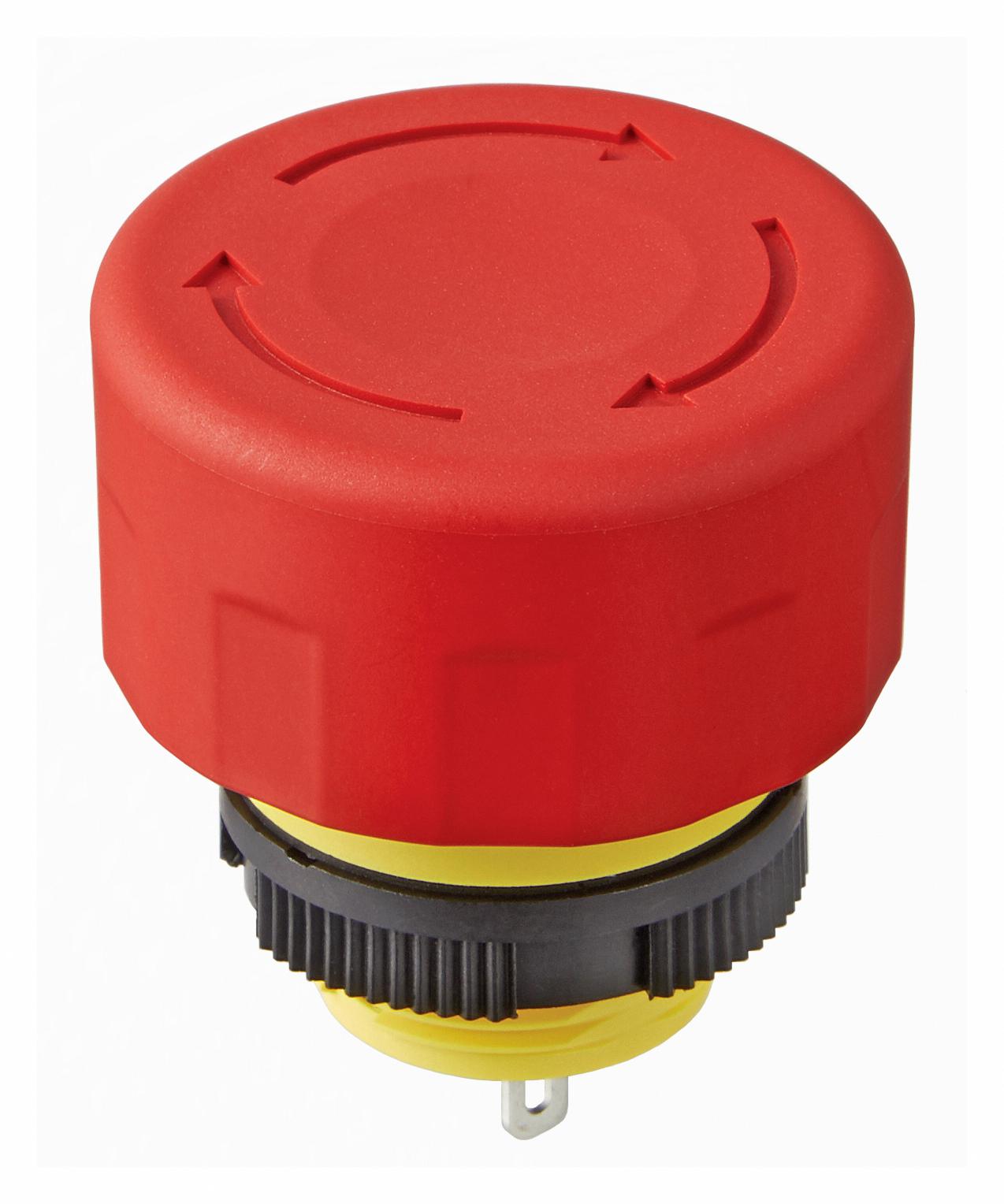

Buy the Buy NKK Switches FFO1 Emergency Stop Switch Part Number FF0116BBCAEA01 Online
Secure your safety systems with the reliable and space-saving NKK Switches FFO1 Emergency Stop Switch. Featuring IP65 protection and available in 25mm and 30mm sizes, this high-quality E-Stop switch is perfect for factory automation, machinery, and safety control panels. Its rugged construction withstands shocks, vibrations, and environmental stresses from -45°C to +80°C. Easy installation with standard panel cutouts and mounting torque ensures quick setup. Trust NKK for durable, compliant safety solutions—order online now for fast delivery.
Order your NKK Switches FFO1 Series FF0116BBCAEA01 emergency stop switch today and enhance your safety and control reliability with this rugged, compact safety switch.
Frequently Asked Questions
Where can I buy NKK Switches FF0116BBCAEA01?
You can click on the BUY or RFQ button to purchase FF0116BBCAEA01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part FF0116BBCAEA01?
You can download the FF0116BBCAEA01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of FF0116BBCAEA01?
NKK Switches
