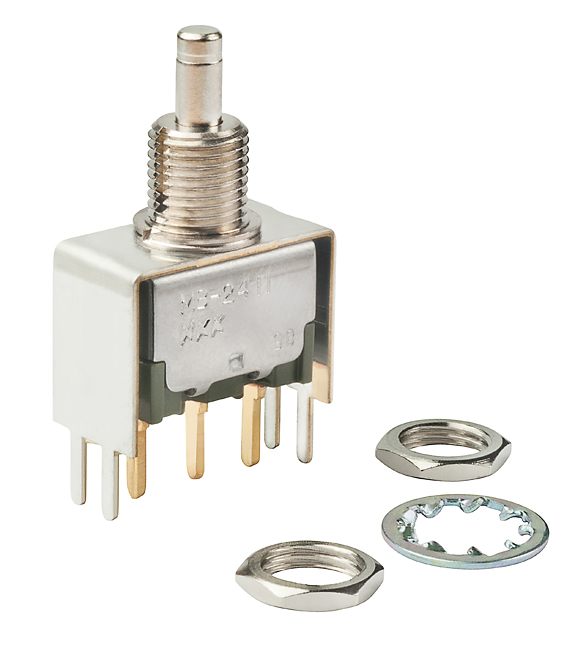

NKK Switches MB2411A1A13 Miniature Toggle Switch
This miniature pushbutton switch is engineered for reliable momentary operation, ideal for space-constrained electronic applications. It features a sturdy construction with gold over silver contact materials rated at 0.4VA max @ 28V AC/DC, ensuring durability and excellent conductivity. The switch provides various panel mount options with threaded bushings like Keyway, D Flat, and reinforced brackets, accommodating panel thicknesses up to 0.134 inches. Its compact size includes a .280-inch (7.1mm) diameter bushing, making it suitable for circuit control, automation, and instrumentation where space efficiency and dependable switching are essential.
NKK Switches MB2411A1A13 Miniature Toggle Switch Specifications:
- Contact Materials: Gold over Silver
- Power Ratings: 3A @ 125V AC, 0.4VA @ 28V AC/DC
- Bushing Diameter: .280" (7.1mm)
- Bushing Types: Keyway, D Flat, Reinforced, Straight PC Mount
- Panel Thickness: up to 0.134" (3.4mm) with standard hardware
- Mounting Options: Threaded with D Flat or Keyway, with reinforced brackets available
- Electrical Ratings: Max 125VAC, 3A; Max 28V AC/DC, 0.4VA
- Operation: Momentary contact, suitable for switching circuits
- Physical Dimensions: Bushing diameter .280 inches, panel cutout size compatible with standard mounting hardware
- Environmental Rating: Not specified, but designed for reliable indoor electronics environments
Buy the NKK Series MB2400 Toggle Switch: MB2411A1A13
Order the NKK Series MB2400 miniature toggle switch today to enhance your electronic projects with reliable, space-efficient switching performance. Designed for momentary contact operation, it features durable gold over silver contacts rated at 0.4VA and can be mounted in various panel types with threaded bushings such as Keyway, D Flat, or reinforced brackets. Perfect for automation, instrumentation, and control systems, this switch ensures dependable switching in compact spaces. Buy online now and enjoy fast, secure delivery to keep your project on schedule.
Get NKK Series MB2400 toggle switch today—built for precision, space-saving design, and long-lasting durability in electronic control applications.
Frequently Asked Questions
Where can I buy NKK Switches MB2411A1A13?
You can click on the BUY or RFQ button to purchase MB2411A1A13 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2411A1A13?
You can download the MB2411A1A13 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2411A1A13?
NKK Switches
