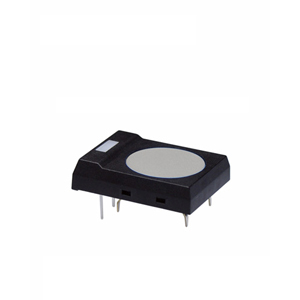

NKK Switches JF15RP2HF Illuminated Tactile Switch
This ultra-thin illuminated tactile switch is designed for reliable performance on printed circuit boards, featuring integrated LED illumination for enhanced visibility. It offers a crisp tactile and audible feedback with a minimal profile of just 0.224 inches (5.7mm) height. Suitable for low-voltage, low-current circuits, it includes options for spot or full-face illumination with various LED colors. The switch's rubber seal prevents contamination and allows for automated soldering and cleaning, making it ideal for compact electronic devices requiring dependable tactile feedback and easy assembly.
NKK Switches JF15RP2HF Illuminated Tactile Switch Specifications:
- Profile Height: 0.224 inches (5.7mm)
- Illumination: Spot or full face with red, green, yellow, orange, blue, gray LEDs
- LED Current: 30-40mA, Forward Voltage: 1.7-2.3V
- Actuator Types: Square, round, sculptured with standard or full face illumination
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 500,000 operations minimum
- Operating Temperature Range: -13°F to +158°F (-25°C to +70°C)
- Operating Force: 3.0N for flush, 2.0N for sculptured actuator
- Mounting: PCB with crimped terminals, standard grid spacing 0.100 inches (2.54mm)
- Durability: Resistant to humidity (90-95% for 96 hours), shock (50G), vibration (1.5mm at 10-55Hz)
- Materials: Polyamide for spot illumination, polycarbonate for full face, rubber seal construction
- Soldering: Wave or manual soldering recommended, cleaning via automated processes
