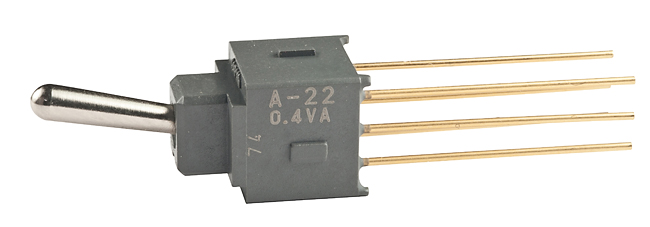

NKK Switches A22AW toggle switch
Subminiature toggle switch suitable for various electronic and industrial applications. Compact design ensures easy integration into tight spaces, providing reliable on/off control.
NKK Switches A22AW toggle switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum between contacts and case for 1 minute
- Mechanical Life: 100,000 operations minimum for On-None-On & On-Off-On circuits
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for .394” toggles
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials & Finishes: Glass fiber reinforced polyamide body, nickel plated brass, phosphor bronze with gold plating, brass with gold plating
- Environmental: -30°C to +85°C, 90-95% humidity for 240 hours @ 40°C
- Soldering & Cleaning: Wave and manual soldering, automated cleaning
- Standards & Certifications: Not UL or CSA tested; designed for low-voltage, low-current logic circuits
Buy the NKK A22AW – Reliable Toggle Switch for Industrial Applications
Purchase your NKK Series A22AW toggle switch online now to enhance your electronic or industrial project. Its compact size, reliable operation, and sealed construction make it perfect for tight spaces. Whether for automation, control panels, or instrumentation, this switch offers durability and consistent performance. Available with various actuator options and circuits, it’s easy to integrate and perfect for low-voltage applications. Order today and experience the convenience of fast, secure online purchasing!
Order your NKK Series A22AW toggle switch today and ensure your projects benefit from dependable on/off control with space-saving design.
Frequently Asked Questions
Where can I buy NKK Switches A22AW?
You can click on the BUY or RFQ button to purchase A22AW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A22AW?
You can download the A22AW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A22AW?
NKK Switches
