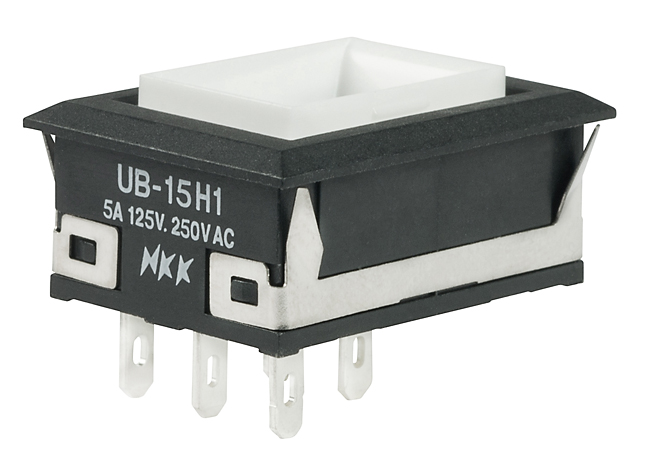

NKK Switches UB15NKW015C Low-Profile Illuminated Push Button Switch
A low-profile illuminated push button switch designed for PCB mounting and soldering. Suitable for various electronic applications requiring a compact and visually identifiable switch.
NKK Switches UB15NKW015C Low-Profile Illuminated Push Button Switch Specifications:
- Poles & Circuits: Single Pole: 1; Double Pole: 2
- Switch Rating: 5A at 125/250V AC, 0.4VA max @ 28V AC/DC
- Electrical Resistance: Silver contacts: 50 milliohms max; Gold contacts: 100 milliohms max
- Insulation Resistance: 200 megaohms min @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case for 1 min
- Pushbutton Travel: Pretravel 0.067” (1.7mm); Overtravel 0.024” (0.6mm); Total 0.091” (2.3mm)
- Materials: Housing/Bezel & Base: UL94V-0 polyamide; Contacts: Silver alloy or gold plated
- Operating Temperature Range: -20°C to +70°C
- Environmental Resistance: 90-95% humidity for 96 hours @ 40°C, vibration 3 Hz, shocks 50G
- Soldering: Wave and manual soldering profiles, hand cleanable with alcohol-based solutions
- Certifications: UL recognized, CSA certified (with specific ordering), recognized at 5A @ 125/250V AC
Buy the NKK Series UB Low Profile Pushbuttons: UB15NKW015C
Enhance your electronic projects with this compact, reliable illuminated push button switch featuring PCB mounting, quick actuation, and certification approvals. Designed for space-constrained applications, it offers durable contacts, excellent insulation resistance, and operation across a broad temperature range. Easily soldered with manual or wave profiles, this switch is perfect for commercial, industrial, and custom electronics requiring robust and visually identifiable controls. Buy online now for fast delivery and quality assurance.
Order your NKK Series UB15NKW015C compact illuminated push button switch today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy NKK Switches UB15NKW015C?
You can click on the BUY or RFQ button to purchase UB15NKW015C from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15NKW015C?
You can download the UB15NKW015C datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15NKW015C?
NKK Switches
