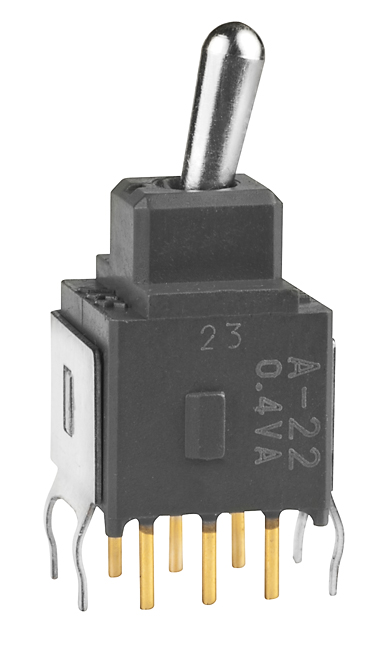

NKK Switches A22JB Subminiature Toggle Switch
A compact subminiature toggle switch designed for precision electronic applications. Suitable for mounting in tight spaces where reliable operation is required.
NKK Switches A22JB Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum between contacts & case for 1 minute
- Mechanical Life: 100,000 operations minimum for certain circuits
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for .394” toggles
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Material: Glass fiber reinforced polyamide for antistatic, nickel plated brass, tin plated phosphor bronze, gold plated brass
- Environmental Data: -30°C through +85°C, 90-95% humidity for 240 hours, 50G acceleration
- Soldering: Wave soldering recommended, manual soldering, automated cleaning
Buy the Buy NKK Switches Subminiature Toggle Part Number A22JB Online
Purchase the NKK Switches A22JB toggle switch online today. This compact, sealed switch is perfect for space-constrained electronic designs, offering excellent reliability, long-lasting durability, and corrosion-resistant terminals ideal for low-voltage logic-level applications. With its space-saving size, robust construction, and proven performance, it ensures smooth operation in a variety of electronic devices. Order now to experience premium quality and quick delivery, making your assembly process faster and easier while ensuring dependable circuit control.
Get NKK Switches A22JB today—designed for space-saving, reliable electronic switching in compact low-voltage circuits.
Frequently Asked Questions
Where can I buy NKK Switches A22JB?
You can click on the BUY or RFQ button to purchase A22JB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A22JB?
You can download the A22JB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A22JB?
NKK Switches
