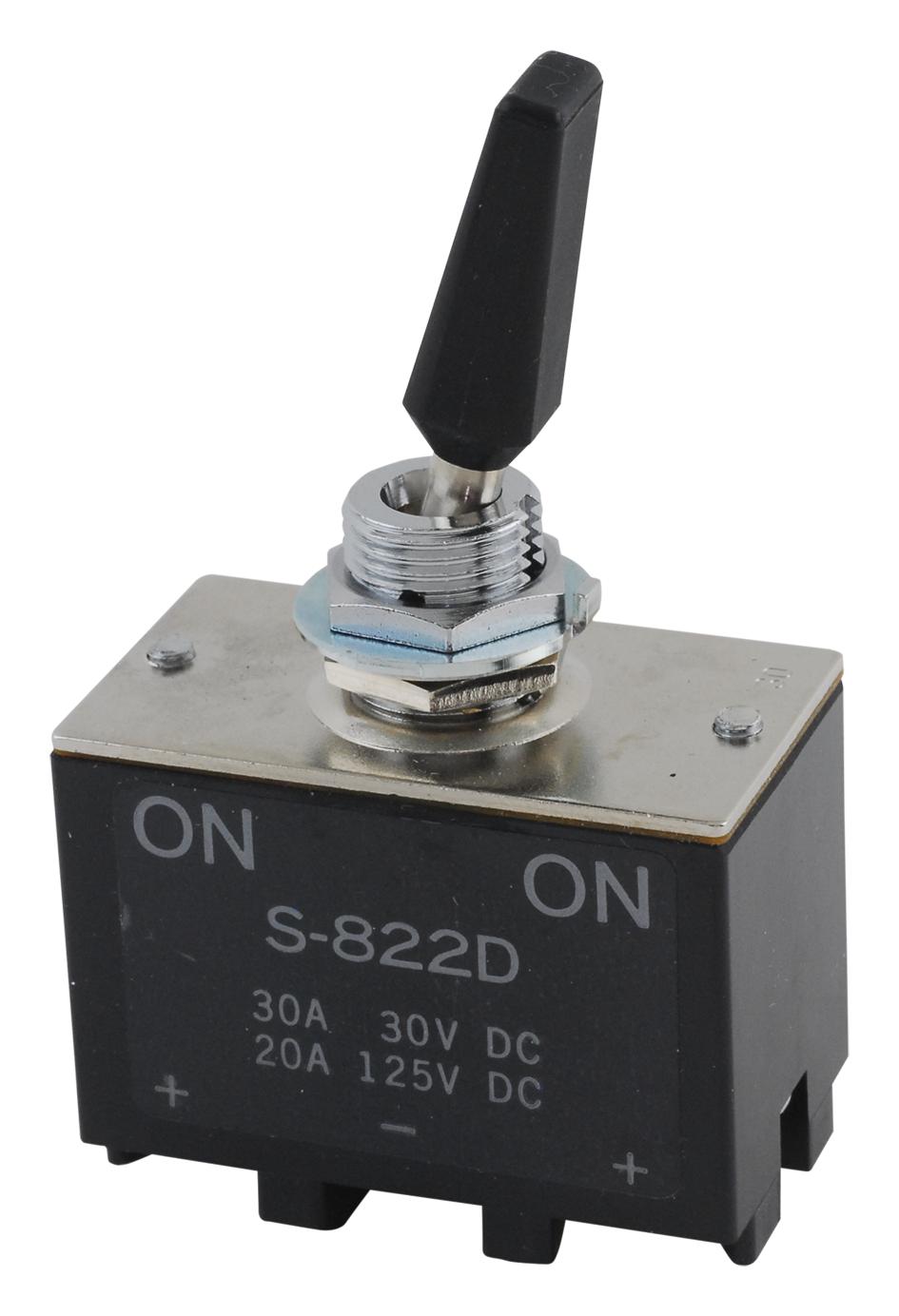

NKK Switches S822D High Capacity Toggle Switch
The S822D is a high-capacity double-pole double-throw toggle switch designed for industrial use. It features screw lug terminals, a flatted lever, and a chrome-plated brass toggle with a zinc-plated steel cover. Made with durable melamine phenol, it is rated for a minimum of 50,000 mechanical and 10,000 electrical operations. Operating within a temperature range of -10°C to 70°C, it supports ON-None-ON switching functions, suitable for demanding electrical applications where reliability and high performance are essential.
NKK Switches S822D High Capacity Toggle Switch Specifications:
- Electrical Capacity: 50A (resistive), 30A (inductive) at 125V and 250V AC
- Number of Poles: Double Pole
- Switch Function: ON-None-ON
- Terminals: Screw lug terminals, compressed terminal connection
- Toggle Material: Chrome-plated brass
- Body Material: Melamine phenol
- Cover Material: Zinc-plated steel, chromate plated
- Operation Life: Minimum 50,000 mechanical, 10,000 electrical operations
- Operating Temperature Range: -10°C to 70°C
- Maximum Panel Thickness: 4.0 mm (0.158 inches)
- Mounting: Panel mount with screws
- Standards & Certifications: Recognized under UL, CSA (when marked)
- Dimensions: Refer to switch datasheet for detailed size
- Environmental Ratings: Suitable for industrial environment, corrosion-resistant finishes
Buy the NKK S822D – Reliable Industrial DPDT Toggle Switch for High-Voltage Applications
Order the NKK S822D high-capacity toggle switch online today to ensure your industrial applications benefit from dependable operation and superior quality. With its robust construction, brass toggle, and phenolic body, it guarantees long-lasting performance in challenging environments. Whether for control panels, machinery, or automation systems, purchasing online provides swift delivery and technical support. Don’t compromise on safety or reliability—choose the best toggle switch for your industrial needs and optimize your equipment’s performance now!
Buy NKK S822D now and experience unmatched durability and reliable switching performance for industrial electrical systems.
Frequently Asked Questions
Where can I buy NKK Switches S822D?
You can click on the BUY or RFQ button to purchase S822D from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S822D?
You can download the S822D datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S822D?
NKK Switches
