NKK Switches UB16KKW01NA pushbutton switch

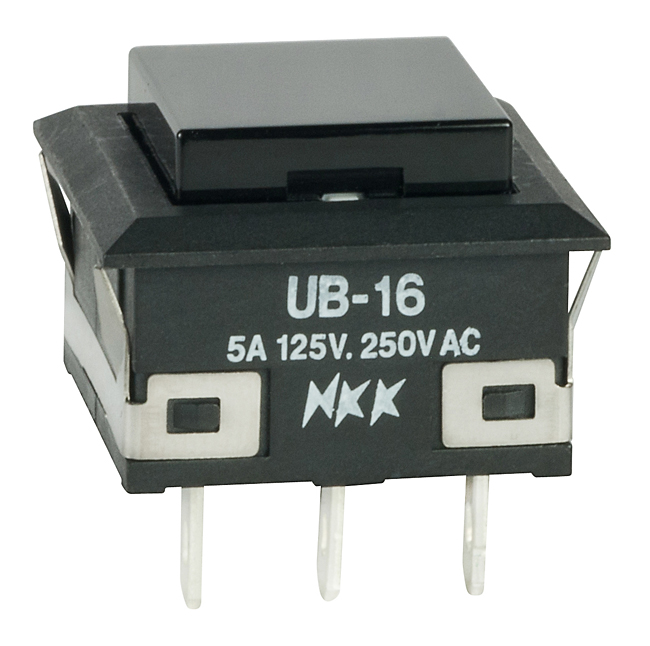

The UB16KKW01NA is a compact, single-pole double-throw SPDT pushbutton switch featuring a low-profile design with solder lug terminals and a square snap-in mounting system. It has a non-illuminated black cap, suitable for panel mounting. The switch body is constructed from glass fiber reinforced polyamide (UL94V-0) with a stainless steel snap-in frame and a glass fiber reinforced liquid crystal polymer base. Its design allows for easy PCB mounting and fits well in space-constrained applications. The switch includes a latch-down mechanism that provides both tactile and visual indication of circuit status. Key features include phosphor bronze movable contacts, a maximum contact resistance of 50 milliohms, and a minimum insulation resistance of 200 megaohms at 500V DC. Operating temperature ranges from -20°C to +70°C. Suitable for industrial use.
NKK Switches UB16KKW01NA pushbutton switch Specifications:
- Poles & Circuits: Single Pole Double Throw (SPDT)
- Contact Resistance: 50 milliohms maximum for silver contacts
- Insulation Resistance: 200 megaohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute
- Material: Body from glass fiber reinforced polyamide (UL94V-0)
- Movable Contacts: Phosphor bronze with silver or gold plating
- Terminal Type: Solder lug
- Maximum Contact Current: 5A at 125/250V AC, 0.4VA maximum at 28V AC/DC
- Temperature Range: -20°C to +70°C
- Operating Force: 1.9N for single-pole models
- Travel: Pretravel 0.067” (1.7mm); Overtravel 0.024” (0.6mm); Total travel 0.091” (2.3mm)
- Construction: Snap-in mounting with stainless steel frame
- Environmental Durability: Up to 1 million operations for momentary, 200,000 for resistive load
- Certifications: UL recognized, CSA certified (order with marking), recognized at 5A @ 125/250V AC
