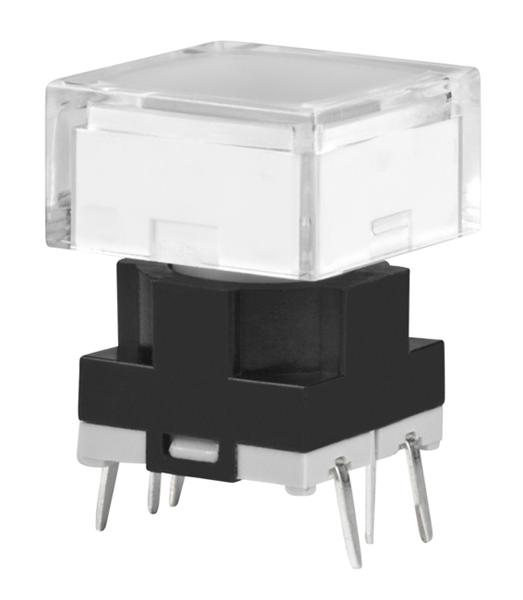

NKK Switches JB15HBPFJB Illuminated Tactile Switch
This low-profile tactile switch with illumination is ideal for PCB applications requiring compact, space-saving design and clear visual indication. It features a dome contact for crisp tactile feedback and long-lasting reliability up to 5 million operations. The switch is constructed with a sealed rubber gasket to prevent contact contamination and support automated soldering and cleaning processes. Equipped with bright LEDs available in red, yellow, and green, it enhances visibility in electronic devices. Suitable for low-voltage, low-current logic circuits, it offers a reliable, durable switching solution for various control and automation applications.
NKK Switches JB15HBPFJB Illuminated Tactile Switch Specifications:
- Electrical Capacity: 50mA @ 24V DC (standard), 125mA @ 24V DC (high force)
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute minimum
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N (standard), 2.65N (high force)
- Total Travel: 0.010” (.254mm) (short actuator), 0.012” (.300mm) (extended actuator)
- Actuator Material: Polyacetal (short), Glass fiber reinforced PBT (extended)
- Case & Base: UL94V-0 rated Polyamide
- Seal Material: Nitrile butadiene rubber
- Terminals: Brass with silver plating, slanted for secure mounting
- Operating Temperature Range: 25°C to +70°C
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm, 2 hours per axis
- Shock: 50G acceleration, tested in 6 directions
- Soldering: Wave and manual soldering recommended, automated cleaning supported
- Standards: UL94V-0 rated case and base
