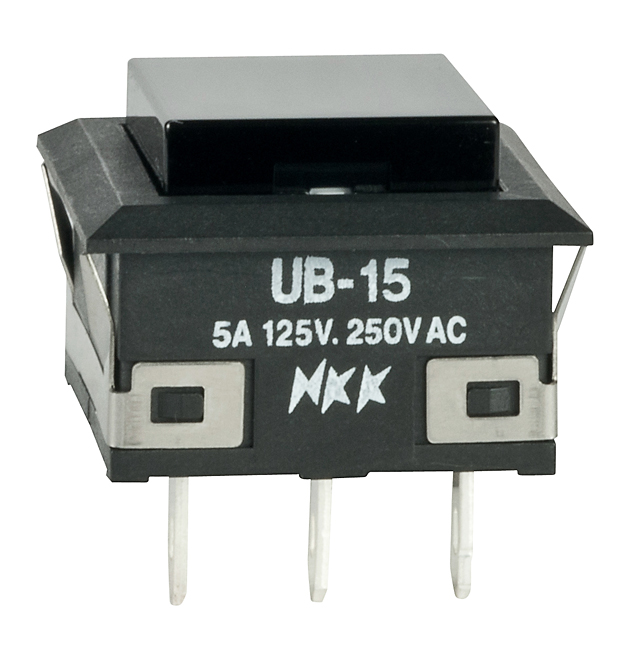

NKK Switches UB15KKW01NA Low Profile Pushbutton Switch
A low-profile, illuminated pushbutton switch designed for panel mounting. Suitable for PC and solder connections, offering easy operation, sensitive actuation, and reliable performance in industrial control panels and automation systems.
NKK Switches UB15KKW01NA Low Profile Pushbutton Switch Specifications:
- Poles & Circuits: Single Pole SPDT
- Mounting Type: PCB Mounting
- Cap Types & Colors: Red, Amber, Green, White, Blue, Black, Clear with various illumination options
- LED Colors & Specifications: Bright/Super Bright LEDs, Forward Voltage up to 3.2V, Current 20-30mA, Reverse Voltage 5V, Peak Current 30mA
- Electrical Capacity: 5A @ 125/250V AC, 5A @ 30V DC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms for silver contacts, 100 milliohms for gold contacts
- Insulation Resistance: Minimum 200 MΩ @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V AC between contacts and case for 1 min
- Mechanical Life: Minimum 1,000,000 operations
- Electrical Life: Minimum 200,000 operations
- Nominal Operating Force: 1.9N for Square & Rectangular caps
- Travel: Total travel approximately 2.3mm, pretravel 1.7mm, overtravel 0.6mm
- Environmental: Operating Temp: -25°C to +50°C for illuminated models; Humidity: 50G shock resistance
- Housing Material: Glass fiber reinforced polyamide UL94V-0
- Soldering Temperature: Profile A for wave and manual soldering
