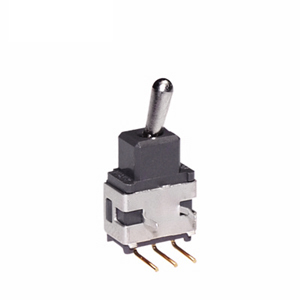

NKK Switches A1SJH Subminiature Toggle Switch
Subminiature toggle switch designed for compact applications, suitable for various electronic devices and control panels. Features reliable operation and durable construction for long-term use.
NKK Switches A1SJH Subminiature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC min for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations min
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for 10mm toggles
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials & Finishes: Toggle - Glass fiber reinforced polyamide; Case Housing - Nickel plated brass; Support Bracket - Glass fiber reinforced polyamide; Movable Contact - Tin plated phosphor bronze; Stationary Contacts - Phosphor bronze with gold plating
- Environmental Data: Operating temperature -30°C to +85°C; Humidity 90-95% for 240 hours; Vibration test 10-55Hz with 1.5mm amplitude; Shock test 50G
- PCB Processing: Suitable for wave soldering, manual soldering, and automated cleaning
Buy the Buy NKK Series A Process Sealed Subminiature Toggle PartsA1SJH Online
Get your NKK series toggle switch A1SJH online today for dependable operation in compact spaces. Designed for electronics and control panels, these durable switches offer reliable performance with a long mechanical and electrical life. Perfect for logic-level circuits, they support wave soldering, manual soldering, and automated cleaning. Their sealed body prevents contact contamination, ensuring stable operation even in harsh environments. Make your purchase now to enhance your projects with high-quality, space-efficient switching solutions that deliver consistent and safe performance.
Order your NKK Series A toggle switch today and ensure your electronic projects benefit from the reliable, space-saving, and long-lasting design.
Frequently Asked Questions
Where can I buy NKK Switches A1SJH?
You can click on the BUY or RFQ button to purchase A1SJH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A1SJH?
You can download the A1SJH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A1SJH?
NKK Switches
