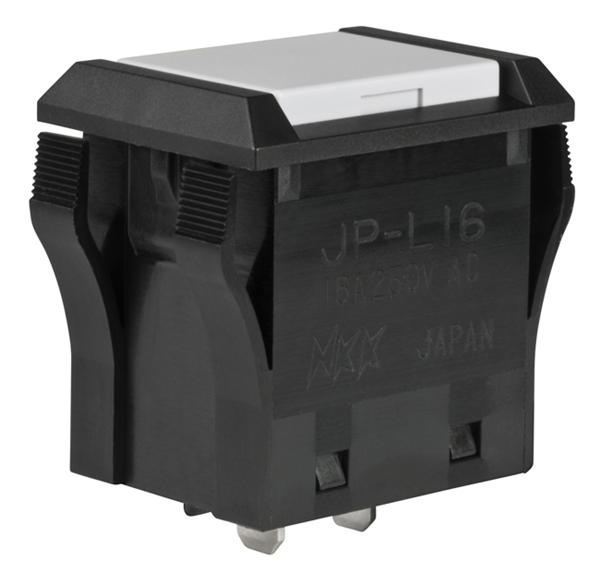

NKK Switches JPL16BB Pushbutton Switch
This is a single-pole, single-throw pushbutton switch rated for 16A with an OFF-ON configuration, featuring an ivory-colored cap. Designed for reliable electrical switching, it incorporates industry-approved ratings for various control panel applications. The switch includes a flat cap with a barrier flange, molded from heat-resistant polyamide UL94V-0, ensuring durability and safety. Suitable for industrial automation and control systems, it offers easy mounting on panels, enhanced insulation resistance, and dielectric strength. The switch is designed for quick connection, with solder lug terminals or quick-connect options, complying with international standards for safety and performance. Its robust construction supports long service life with a minimum of 25,000 operations, ideal for demanding environments requiring high current handling and reliable switching performance.
NKK Switches JPL16BB Pushbutton Switch Specifications:
- Rated Power Level: 16A @ 125/250V AC
- Pole & Circuit: SPST ON OFF
- Actuator Type: Flat Cap with Barrier Flange
- Cap Color: Ivory
- Contact Resistance: 20 milliohms max
- Insulation Resistance: 1,000 megohms min @ 500V DC
- Dielectric Strength: 2,000V AC min between contacts for 1 minute
- Mechanical Life: 25,000 operations minimum
- Environmental Temperature Range: -10°C to +70°C
- Material: Polyphenylene sulfide (UL94V-0) for housing, silver alloy contacts
- Terminals: Solder lug or quick connect
- Mounting Panel Thickness Range: 0.5 mm to 4.0 mm
- Certification: UL recognized, VDE approved
- Dimensions: Panel cutout diameter approximately 15 mm, height varies depending on model
Buy the NKK Series JP Pushbutton Switch: JPL16BB
Purchase your NKK Series JP JPL16BB pushbutton switch online now and experience dependable switching performance. Perfect for industrial control panels, this switch features a robust construction with a durable ivory cap, ensuring long-lasting operation. Designed for quick connection and panel mounting, it offers a high current rating of 16A and complies with international safety standards, including UL and VDE. Whether for automation, machinery, or safety systems, this switch provides reliable and safe operation in demanding environments—order today for fast delivery and trusted quality.
Order your NKK Series JP JPL16BB pushbutton switch today and ensure reliable control with our high-quality, industrial-grade switch solution.
Frequently Asked Questions
Where can I buy NKK Switches JPL16BB?
You can click on the BUY or RFQ button to purchase JPL16BB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JPL16BB?
You can download the JPL16BB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JPL16BB?
NKK Switches
