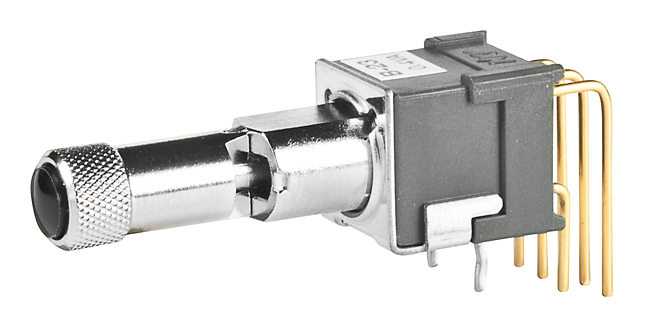

NKK Switches B23LH Subminiature Toggle Switch
This compact and reliable subminiature toggle switch is designed for space-efficient electronic and control applications. It features a sealed body construction, ensuring protection against contact contamination and facilitating easier soldering and cleaning processes. The switch supports logic-level circuits with low-voltage and low-current ratings, making it ideal for sensitive control systems. Its sturdy construction includes nickel-plated brass, nylon components, and epoxy-sealed terminals. Suitable for panel mounting with optional threaded bushings, it meets industry standards for durability, vibration, and temperature performance, ensuring long-term reliability in diverse environments.
NKK Switches B23LH Subminiature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC min for 1 min
- Mechanical Life: 100,000 operations min
- Electrical Life: 50,000 operations min
- Nominal Operating Force: 1.47N (long paddle toggle, momentary)
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Toggle Material: Nickel plated brass
- Bushing: Carbon blended polyamide; nickel plated zinc alloy
- Case Housing: Nitrile butadiene rubber
- Support Bracket: Glass fiber reinforced polyamide
- Movable Contact: Tin plated phosphor bronze
- Stationary Contacts: Phosphor bronze with gold plating
- Terminals: Copper alloy with gold plating
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90-95% RH for 96 hours @ 40°C
- Vibration: 10-55Hz, amplitude 1.5mm, 2 hours in three directions
- Shock: 50G acceleration
- Mounting Torque: 30 ~ 3.98 Ib*in
- Soldering: Wave and manual soldering, automated cleaning
- Standards & Certifications: UL9AV-0 (not UL recognized or CSA certified), compliant with IEC60529 panel seal specifications
