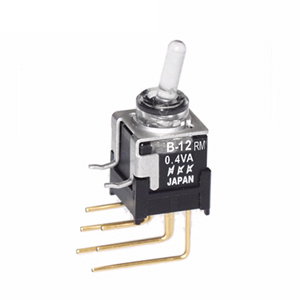

NKK Switches B12JJVCF Illuminated Toggle Switch
Subminiature illuminated toggle switch designed for printed circuit board (PCB) mounting, ideal for compact, space-saving applications. It features a sealed body to prevent contact contamination, with built-in LED illumination available in green, red, amber, or bi-color options for high visibility. The switch incorporates award-winning STC contact mechanism for smooth actuation, stability, and high reliability, making it suitable for logic-level circuits. Its rugged construction ensures durability, with environmental resistance, standard soldering profiles, and compliance with industry standards for high-performance electronic systems.
NKK Switches B12JJVCF Illuminated Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA max @ 28V AC/DC, with a range of 0.1mA to 0.1A
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC min for 1 minute
- Mechanical Life: 100,000 operations min
- Electrical Life: 50,000 operations min
- Nominal Operating Force: 1.18N
- Contact Timing: Nonshorting, break-before-make
- Angle of Throw: 26°
- Actuator Material: Polyamide
- Bushing Housing Material: Polyamide
- Case Housing Material: Glass fiber reinforced polyamide
- Support Bracket Material: Polyamide
- Movable Contact Material: Phosphor bronze with tin or gold plating
- Stationary Contacts Material: Phosphor bronze with tin or gold plating
- Terminals Material: Brass with tin or gold plating
- Operating Temperature Range: -25°C to +55°C
- Humidity: 90-95% at 40°C for 240 hours
- Vibration: 10-55Hz, amplitude 1.5mm peak-to-peak
- Shock: 50G acceleration
- Soldering: Wave and manual profiles; suitable for automated cleaning with alcohol-based solutions
Buy the Buy NKK Series B Fully Illuminated Toggle Switch Part Number B12JJVCF Online
Purchase the NKK illuminated toggle switch online today to ensure reliable, space-efficient control in your electronic applications. Featuring sealed construction and award-winning contact mechanism, this switch offers high durability and excellent illumination with integrated LEDs in multiple colors for enhanced visibility. Its compact design makes it ideal for PCB mounting, and the robust build withstands environmental stresses. Easy to install with standard soldering profiles, ensuring seamless integration into your automation, control, or instrumentation projects for long-lasting performance.
Get NKK B12JJVCF today—designed for high visibility, reliable operation, and optimal durability in compact electronic systems.
