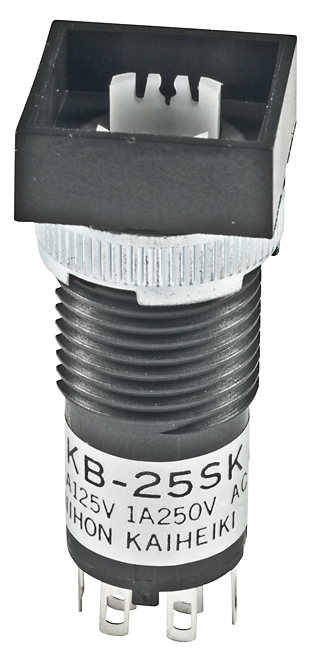

NKK Switches KB25SKW01 Miniature Pushbutton Switch
A miniature illuminated pushbutton switch designed for panel mounting applications. It features a compact size suitable for control panels and provides visual indication when activated.
NKK Switches KB25SKW01 Miniature Pushbutton Switch Specifications:
- Body diameter: 12mm (.472")
- Panel thickness capability: 8mm (.315")
- Housing material: Polyamide
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum for silver contacts
- Nominal Operating Force: 100 ~ 200 grams (maintained), 100 ~ 300 grams (momentary)
- Travel: 3.0mm (.118")
- Operating Temp Range: -25°C to +50°C
- Vibration: 10 ~ 55Hz, peak-to-peak amplitude 1.5mm
- Shock: 50G acceleration
- Soldering: 3 seconds @ 350°C or 5 seconds @ 270°C
- Standards & Certifications: UL Recognized, CSA Certified
Buy the NKK Miniature Pushbutton – Reliable Switches for Industrial Applications
Enhance your control panel with the reliable NKK miniature illuminated pushbutton. Designed for industrial applications, it offers durable performance, easy installation, and clear visual indication. Perfect for automation, machinery, and control systems, this switch combines compact size with long life and high quality. Purchase online today for fast delivery and increase your project's reliability with trusted electronic components from NKK.
Order your NKK Series KB miniature illuminated pushbutton today and ensure dependable switching for your control panels and industrial projects.
Frequently Asked Questions
Where can I buy NKK Switches KB25SKW01?
You can click on the BUY or RFQ button to purchase KB25SKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KB25SKW01?
You can download the KB25SKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KB25SKW01?
NKK Switches
