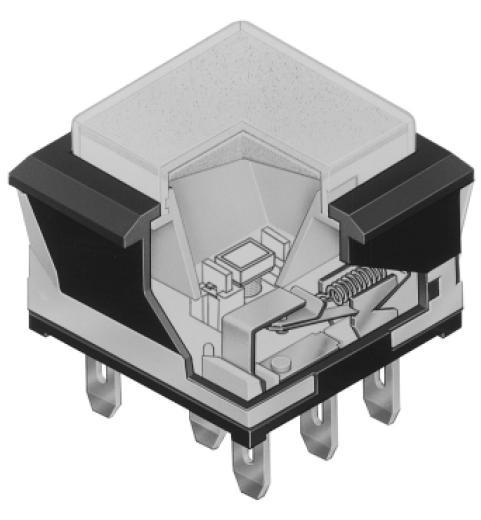

NKK Switches UB15KKW015FFF Low Profile Illuminated Pushbutton
The UB15KKW015F-FF is a compact, low-profile SPDT pushbutton switch with a green-illuminated square cap, featuring a green lens and diffuser. It incorporates epoxy-sealed phosphor bronze terminals with silver plating for reliable electrical contact, and offers tactile feedback with a latch-down mechanism indicating circuit status visibly. Designed for space-constrained environments, it combines PCB mountability with a short body, meeting UL94V-0 flammability standards. Its operating temperature range extends from -25°C to 50°C, making it ideal for industrial applications requiring durable, illuminated control switches.
NKK Switches UB15KKW015FFF Low Profile Illuminated Pushbutton Specifications:
- Switch Type: SPDT (Single Pole Double Throw)
- Illumination: Green LED, Square Cap with Lens and Diffuser
- Electrical Ratings: 5A at 125/250V AC, 0.4VA at 28V AC/DC
- Contact Resistance: 50 milliohms for silver, 100 milliohms for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations (momentary), 200,000 operations (resistive load)
- Operating Temperature Range: -25°C to 50°C
- Housing Material: UL94V-0 rated polyamide
- Terminal Material: Phosphor bronze with silver plating
- Mounting: PCB, short body for tight spaces
- Standards: UL94V-0 flammability
- Dimensions: Compact design with short body, suitable for panel mounting
Buy the NKK Series Low Profile Pushbutton: UB15KKW015F-FF
Purchase the NKK Series Low Profile Illuminated Pushbutton UB15KKW015F-FF online now. This space-saving SPDT switch features green LED illumination, epoxy-sealed terminals for durability, and a tactile latch-down mechanism for clear circuit status indication. Perfect for industrial applications, its short body design fits into tight spaces while providing reliable operation from -25°C to 50°C. Easily install this high-quality switch into your control systems with confidence, ensuring long-lasting performance and safety compliance.
Order your NKK Series Low Profile Pushbutton UB15KKW015F-FF today and enhance your control panels with reliable, illuminated switching solutions.
Frequently Asked Questions
Where can I buy NKK Switches UB15KKW015FFF?
You can click on the BUY or RFQ button to purchase UB15KKW015FFF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15KKW015FFF?
You can download the UB15KKW015FFF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15KKW015FFF?
NKK Switches
