NKK Switches A13HW toggle switch

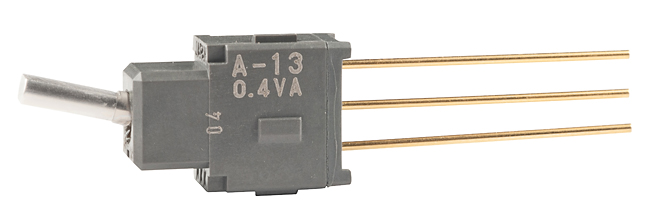

Subminiature toggle switch designed for precise control in compact electronic applications. Suitable for various industrial and consumer devices.
NKK Switches A13HW toggle switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations minimum for certain circuits
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for .394” toggles
- Materials: Glass fiber reinforced polyamide, nickel plated brass, tin plated phosphor bronze
- Operating Temperature: -30°C to +85°C
- Humidity: 90-95% for 240 hours @ 40°C
- Soldering: Wave soldering recommended, manual soldering outlined, automated cleaning specified
- Certifications: Not UL or CSA tested
- Utilization: Low-voltage, low-current logic-level circuits
- Physical Dimensions: Terminal spacing 2.54mm x 2.54mm, toggle size .394” or .248”
Buy the NKK A13HW – Reliable Toggle Switch for Industrial Applications
Enhance your electronic control systems by purchasing the NKK toggle switch online. Designed for space-efficient, reliable operation, this switch offers durable performance in a variety of industrial and consumer devices. With excellent electrical ratings, high mechanical and electrical life, and easy soldering compatibility, it’s the perfect choice for precise control in low-voltage applications. Secure your NKK Series A13HW toggle switch today and ensure your projects benefit from dependable, high-quality components that stand the test of time.
Order your NKK Series A13HW toggle switch today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy NKK Switches A13HW?
You can click on the BUY or RFQ button to purchase A13HW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A13HW?
You can download the A13HW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A13HW?
NKK Switches
